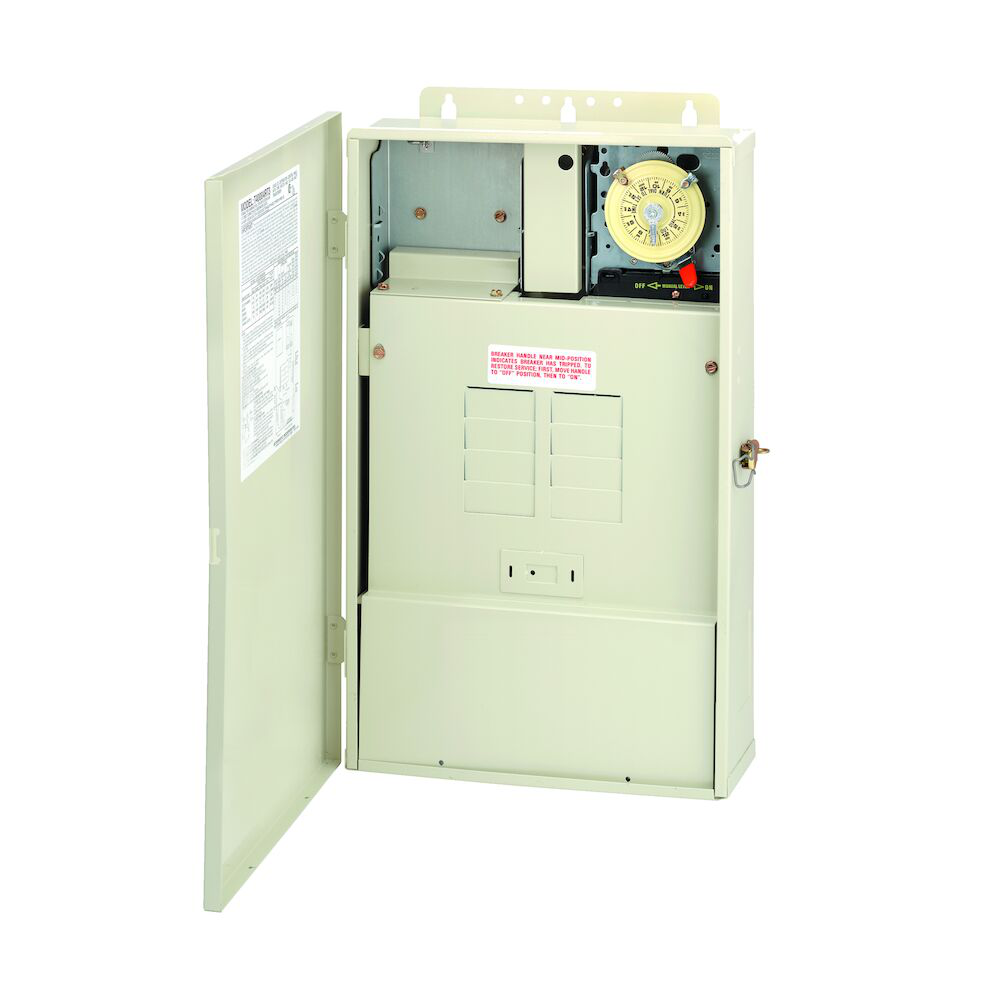

Intermatic T40004RT3
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Intermatic T40004RT3 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Knockout
- Knockout Dimensions Back
- (4) 7/8" - 1 1/8", (2) 1 1/8" - 1 3/8"
- Knockout Dimensions Bottom
- (5) 7/8" - 1 7/8", (4) 7/8", (2) 1 1/8" - 1 3/8" - 1 5/8"
- Knockout Dimensions Left
- (2) 7/8" - 1 1/8"
- Knockout Dimensions Right
- (1) 1 3/4" x 2 3/4"
- Number Of Receptacle Switch Knockouts
- 1
Load Ratings
- Inductive Load Ratings
- 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
- Inductive Load Ratings Ranges
- 40 A, 120-240 VAC, 60 Hz
- Motor Load Ratings
- 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
- Pilot Duty Load Ratings
- 1000 VA, 120 VAC, 60 Hz; 1000 VA, 208 VAC, 60 Hz; 1000 VA, 240 VAC, 60 Hz
- Resistive Load Ratings
- 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
- Resistive Load Ratings Ranges
- 40 A, 120-240 VAC, 60 Hz
- Tungsten Load Ratings
- 40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz
- Tungsten Load Ratings Ranges
- 40 A, 120-240 VAC, 60 Hz
Specifications
- Applications
- Distribution/Control Panel; Landscape Lighting; Motor Control; Pump Control; Underwater Lighting
- Country of Origin
- Mexico
- CSA Certification
- cCSAus
- Enclosure Type
- Outdoor type 3R plastic
- Input Voltage Ranges
- 120-240 VAC, 60 Hz single-phase
- Lifecycle
- Production
- Load Center Rating Display
- 100 A, 120-240 VAC, Single Phase, 60 Hz
- Load Center Ratings
- 100 A, 120 VAC, 60 Hz; 100 A, 208 VAC, 60 Hz; 100 A, 240 VAC, 60 Hz, Single Phase
- Market
- Residential; Commercial
- Mechanism Supply Voltage
- 240 VAC, 60 Hz
- Number Of Breaker Knockouts
- 8
- Number Of Circuits
- 1
- Operating Temperature Max
- 130°C
- 54°F
- Operating Temperature Min
- -40°F
- -40°C
- Packaging Applications
- Low-Voltage Lighting
- Pilot Duty Load Ratings Ranges
- 1000 VA, 120-240 VAC, 60 Hz
- Power Consumption Max W
- 3 W
- Product Depth
- 4.75 in; 120.7 mm
- Product Height
- 20.875 in; 530.2 mm
- Product Width
- 12.875 in; 327 mm
- Solutions
- Pool & Spa
- Switch Type
- DPST
- Transformer Input Voltage
- 3 A, 120 VAC, 60 Hz
- Transformer Output Voltage
- 12, 13, 14 VAC
- Transformer W
- 300
- Unit Carton Description
- EA-Each
- Units Per Pallet
- 25
- Warranty Period
- 1-Year limited
