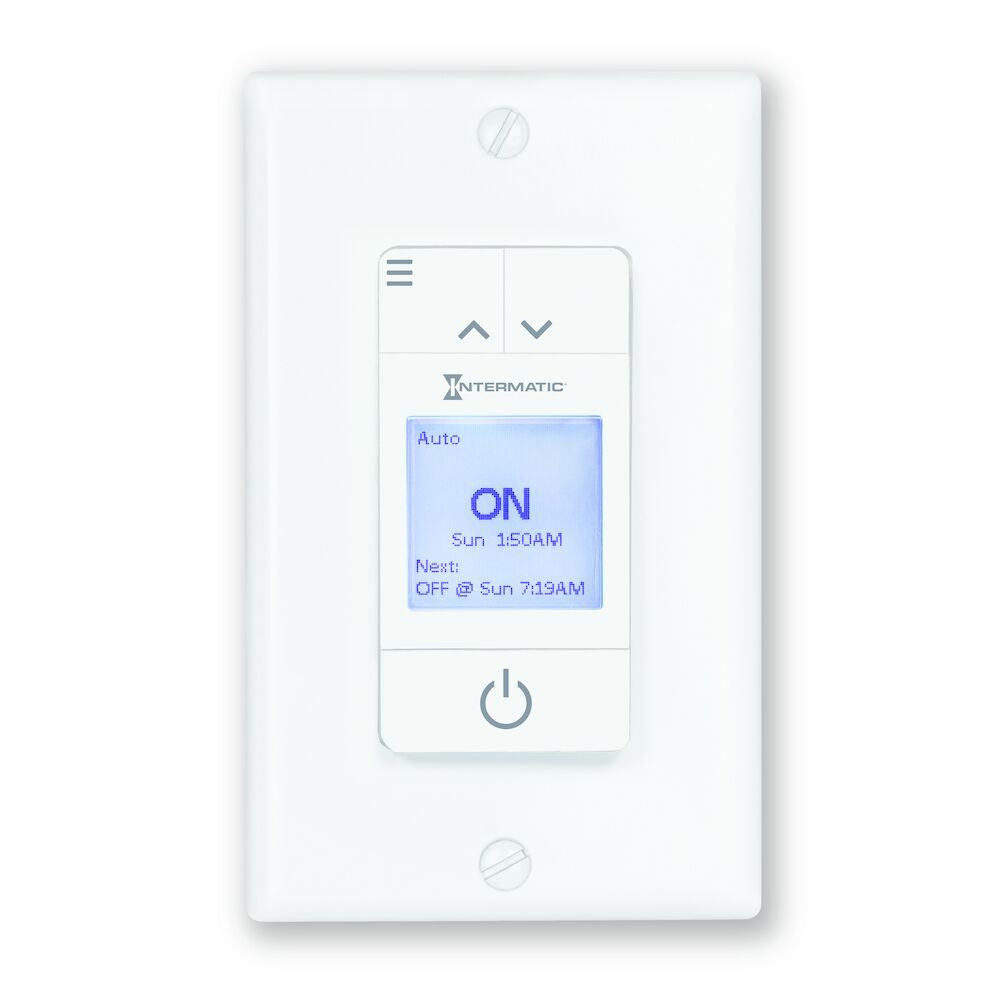

Intermatic ST700W
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Intermatic ST700W is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Load Ratings
- Incandescent Multi Gang Load Ratings
- 8 A, 120 VAC, 50 Hz; 8 A, 120 VAC, 60 Hz
- Inductive Load Ratings
- 15 A, 120 VAC, 50 Hz; 15 A, 120 VAC, 60 Hz
- Inductive Load Ratings Ranges
- 15 A, 120 VAC, 50/60 Hz
- Motor Load Ratings
- 1 HP, 120 VAC, 60 Hz; 1 HP, 120 VAC, 50 Hz
- Motor Load Ratings Ranges
- 1 HP, 120 VAC, 50/60 Hz
- Tungsten Load Ratings
- 8 A
Specifications
- Application Compatibilities
- CFL; Fluorescent; Incandescent; LED
- Applications
- Indoor Lighting Control; Air Movement & Ventilation; Outdoor Lighting Control
- Backup Type
- Battery
- Battery Service Type
- Non-replaceable
- Battery Type
- CR2032
- Color
- White
- Country of Origin
- Thailand
- Electronic Ballast LED
- 5 A, 600 W
- General Purpose Load Ratings
- 15 A
- Incandescent Multi Gang Load Ratings Ranges
- 8 A, 120 VAC, 50/60 Hz
- Input Voltage Ranges
- 120 VAC, 50/60 Hz
- In Wall Wiring Configurations
- 3-Way; Single
- Lifecycle
- Production
- Market
- Commercial; Residential
- Maximum On Off Operations
- 42
- Mechanism Type
- Digital/Electrical
- Minimum On Off Time
- 1 min
- Neutral Connection Required CVL
- Yes
- Operating Temperature Max
- 50°F
- 122°C
- Operating Temperature Min
- -20°F
- -4°C
- Operation Features
- Astronomic; Daylight Saving Time
- Operation Mode
- 24 hour; 7 day
- Other Certifications
- Title 20
- Packaging Applications
- Lighting; Fans; Pumps
- Patent Number
- US D828 , 311
- Product Depth
- 1 1/3 in; 33.9 mm
- Product Height
- 2 3/4 in; 69.9 mm
- Product Width
- 1 3/4 in; 44.4 mm
- Solutions
- Energy Savings; Lighting Control; Comfort & Convenience; Security
- UL Certification
- cULus
- Unit Carton Description
- EA-Each
- Units Per Pallet
- 1836
- Wall Plate Configuration
- Single-Gang
- Warranty Period
- 3-Year limited
