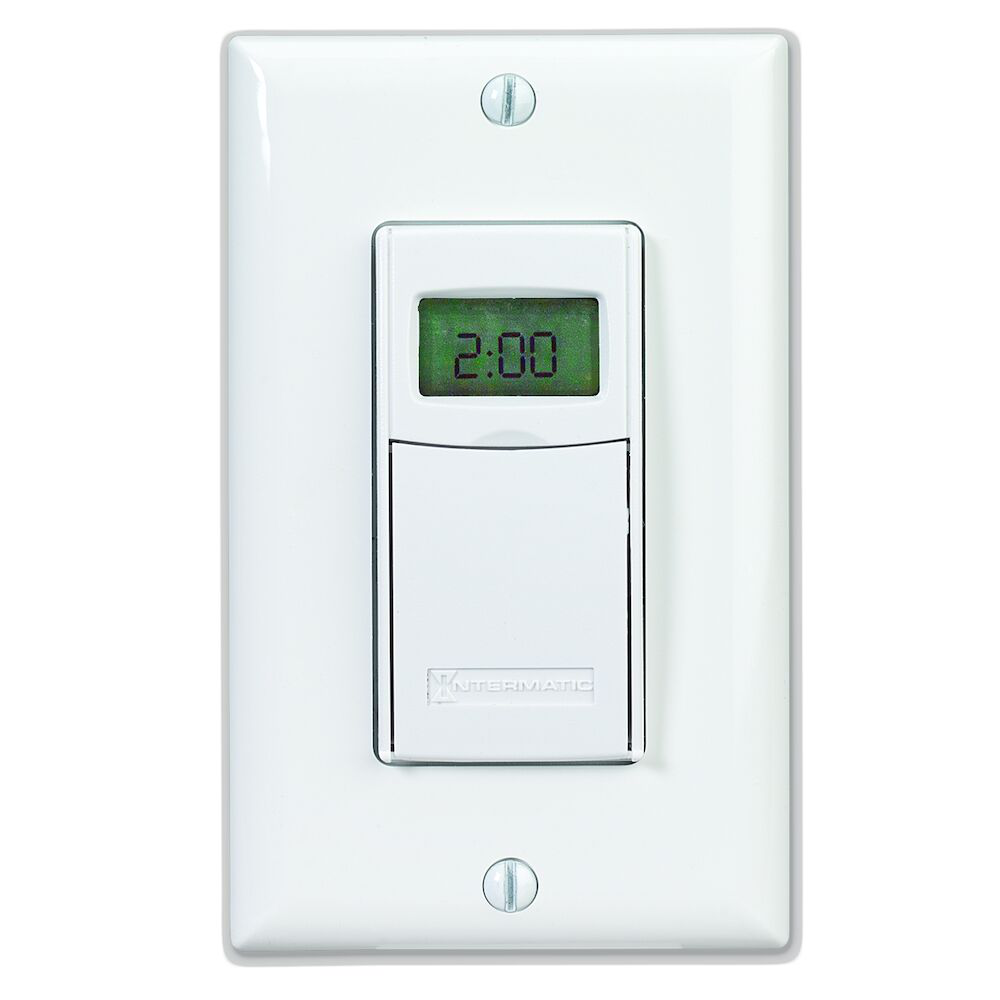

Intermatic ST01A
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Intermatic ST01A is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Load Ratings
- Inductive Load Ratings
- 8 A, 120 VAC, 50 Hz; 4 A, 208 VAC, 50 Hz; 4 A, 240 VAC, 50 Hz; 4 A, 277 VAC, 50 Hz; 8 A, 120 VAC, 60 Hz; 4 A, 208 VAC, 60 Hz; 4 A, 240 VAC, 60 Hz; 4 A, 277 VAC, 60 Hz
- Inductive Load Ratings Ranges
- 8 A, 120 VAC, 50/60 Hz; 4 A, 208-277 VAC, 50/60 Hz
- Motor Load Ratings Ranges
- 1 HP, 120 VAC; 2 HP, 240 VAC
Specifications
- Application Compatibilities
- Incandescent; Fluorescent; CFL; LED
- Applications
- Indoor Lighting Control; Air Movement & Ventilation; Outdoor Lighting Control
- Backup Protection Time
- 3 Years
- Backup Type
- Battery
- Ballast Fluorescent
- 8 A, 960 VA, 120 VAC; 4 A, 832-1108 VA, 208-277 VAC
- Battery Service Type
- Replaceable
- Battery Type
- CR2 Lithium
- Color
- Light Almond
- Country of Origin
- China
- CSA Certification
- cCSAus
- DC Loads
- 4 A, 12 VDC; 2 A, 28 VDC
- Input Voltage Ranges
- 120-277 VAC, 50/60 Hz
- In Wall Wiring Configurations
- Single; 3-Way
- Lifecycle
- Production
- Market
- Commercial; Residential
- Maximum On Off Operations
- 40
- Max Load Handling Capability
- 15 A
- Mechanism Type
- Digital/Electrical
- Minimum On Off Time
- 1 min
- Operating Temperature Max
- 104°C
- 40°F
- Operating Temperature Min
- 32°C
- 0°F
- Operation Features
- Astronomic; Daylight Saving Time
- Operation Mode
- 24 hour
- Other Certifications
- Title 20
- Packaging Applications
- Lighting; Fans; Motors
- Product Depth
- 1.8125 in; 46 mm
- Product Height
- 4.125 in; 104.8 mm
- Product Width
- 1.75 in; 44.5 mm
- Resistive Heater
- 15 A, 1800-4155 W, 120-277 VAC
- Solutions
- Energy Savings; Lighting Control; Comfort & Convenience; Security
- Tungsten Incandescent
- 1800 W, 120 VAC; 1248-1662 W, 208-277 VAC
- Tungsten Incandescent Ranges
- 1800 W, 120 VAC; 1248-1662 W, 208-277 VAC
- Unit Carton Description
- EA-Each
- Units Per Pallet
- 2160
- Wall Plate Configuration
- Single-Gang
- Warranty Period
- 1-Year limited
Williams Automation sells Intermatic parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
