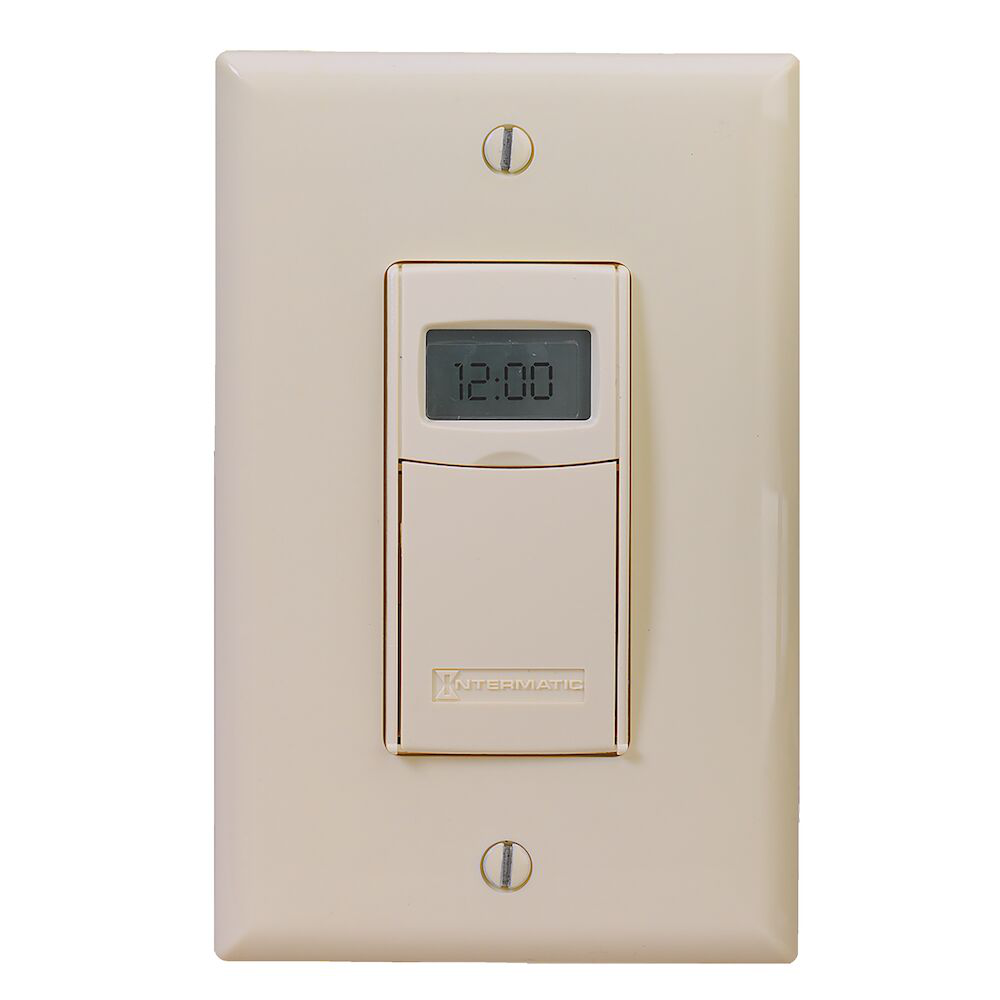

Intermatic ST01
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Highly versatile Heavy-Duty Timers are ideal for any application that requires a simple or complex ON/OFF schedule, regardless of load. No neutral connection is required. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.7-Day Heavy-Duty Programmable Timer, 120-277 VAC, 15A, White
Intermatic ST01 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Load Ratings
- Inductive Load Ratings
- 8 A, 120 VAC, 50 Hz; 4 A, 208 VAC, 50 Hz; 4 A, 240 VAC, 50 Hz; 4 A, 277 VAC, 50 Hz; 8 A, 120 VAC, 60 Hz; 4 A, 208 VAC, 60 Hz; 4 A, 240 VAC, 60 Hz; 4 A, 277 VAC, 60 Hz
- Inductive Load Ratings Ranges
- 8 A, 120 VAC, 50/60 Hz; 4 A, 208-277 VAC, 50/60 Hz
- Motor Load Ratings Ranges
- 1 HP, 120 VAC; 2 HP, 240 VAC
Specifications
- Application Compatibilities
- Incandescent; Fluorescent; CFL; LED
- Applications
- Indoor Lighting Control; Air Movement & Ventilation; Outdoor Lighting Control
- Backup Protection Time
- 3 Years
- Backup Type
- Battery
- Battery Service Type
- Replaceable
- Battery Type
- CR2 Lithium
- Color
- White
- Country of Origin
- China
- CSA Certification
- cCSAus
- DC Loads
- 4 A, 12 VDC; 2 A, 28 VDC
- Input Voltage Ranges
- 120-277 VAC, 50/60 Hz
- In Wall Wiring Configurations
- Single; 3-Way
- Lifecycle
- Production
- Market
- Commercial; Residential
- Maximum On Off Operations
- 40
- Max Load Handling Capability
- 15 A
- Mechanism Type
- Digital/Electrical
- Minimum On Off Time
- 1 min
- Operating Temperature Max
- 104°C
- 40°F
- Operating Temperature Min
- 32°C
- 0°F
- Operation Features
- Astronomic; Daylight Saving Time
- Operation Mode
- 24 hour
- Other Certifications
- Title 20
- Packaging Applications
- Lighting; Fans; Motors
- Product Depth
- 1.8125 in; 46 mm
- Product Height
- 4.125 in; 104.8 mm
- Product Width
- 1.75 in; 44.5 mm
- Resistive Heater
- 15 A, 1800-4155 W, 120-277 VAC
- Solutions
- Energy Savings; Lighting Control; Comfort & Convenience; Security
- Tungsten Incandescent
- 1800 W, 120 VAC; 1248-1662 W, 208-277 VAC
- Tungsten Incandescent Ranges
- 1800 W, 120 VAC; 1248-1662 W, 208-277 VAC
- Unit Carton Description
- EA-Each
- Units Per Pallet
- 2160
- Wall Plate Configuration
- Single-Gang
- Warranty Period
- 1-Year limited
