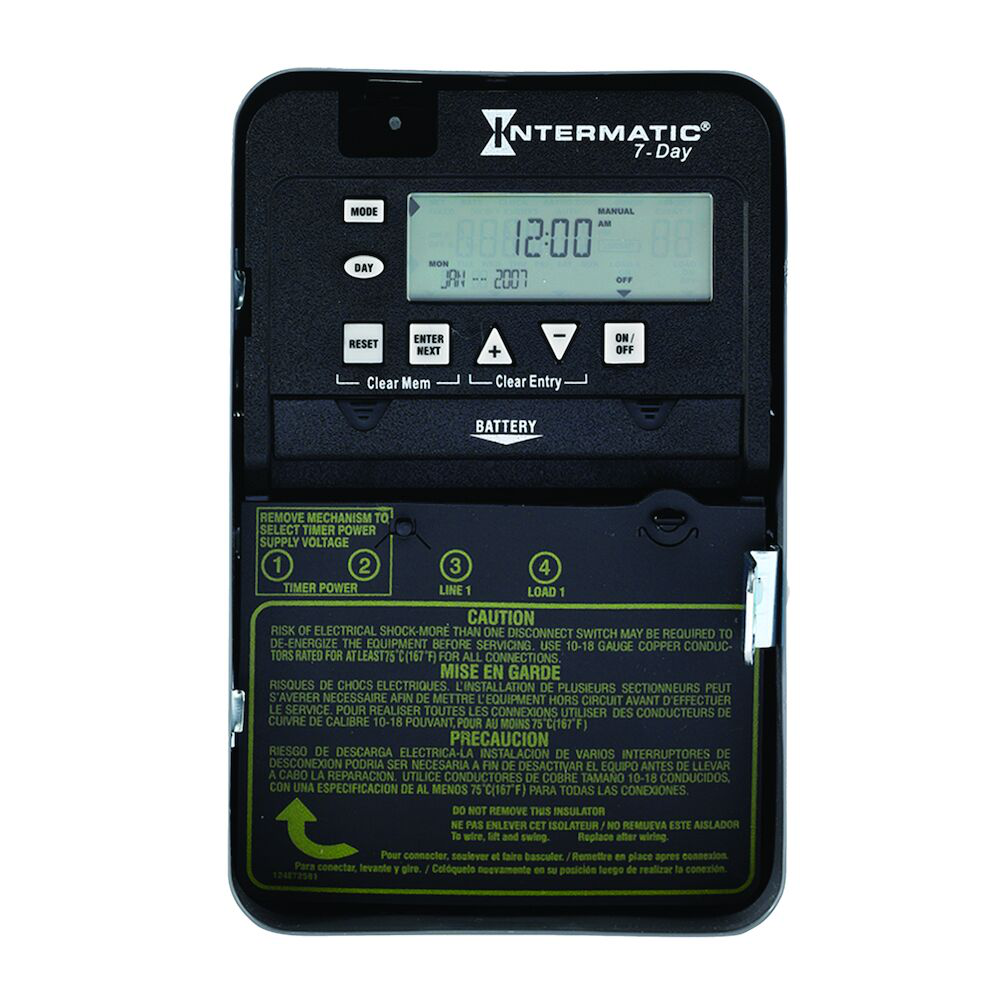

Intermatic ET1705C
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
This series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, up to 28 events total, and automatic daylight saving time corrections without the need of user interaction. They come in standard 24-hour, 7-day and 7-day astronomic versions.7-Day 1-Circuit Electronic Control, 120-277 VAC, SPST, Indoor Metal Enclosure
Intermatic ET1705C is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Knockout
- Knockout Dimensions Back
- (1) combination 1/2" - 3/4"
- Knockout Dimensions Bottom
- (2) combination 1/2" - 3/4"
Load Ratings
- Electronic Ballast Load Ratings Ranges
- 1 A, 120-277 VAC
- Inductive Load Ratings NO Ranges
- 30 A, 120/240 VAC
- Magnetic Ballast Load Ratings NO Ranges
- 20 A, 120-277 VAC
- Motor Load Ratings NO Ranges
- 1 HP, 120 VAC; 2 HP, 240 VAC
- Motor Load Ratings Ranges
- 1 HP, 120 VAC; 2 HP, 240 VAC
- Resistive Load Ratings NO Ranges
- 20 A, 28 VDC; 30 A, 120/240 VAC
- Resistive Load Ratings Ranges
- 20 A, 28 VDC; 30 A, 120/240 VAC
- Tungsten Load Ratings NO Ranges
- 5 A, 120/240 VAC
- Tungsten Load Ratings Ranges
- 5 A, 120-240 VAC
Specifications
- Applications
- Indoor Lighting Control; Timing/Scheduling ON/OFF; Machinery & Pump Controls
- Backup Type
- Battery
- Battery Service Type
- Field Serviceable
- Battery Type
- AAA
- Country of Origin
- China
- CSA Certification
- cCSAus
- Daylight Saving Adjustment
- Automatic
- Electronic Series
- ET1700 Series
- Enclosure Type
- Indoor type 1 metal
- Input Voltage Ranges
- 120-277 VAC, 50/60 Hz
- Lifecycle
- Production
- Market
- Commercial
- Maximum On Off Operations
- 14
- Maximum On Off Time
- Indefinite
- Minimum On Off Time
- 1 min
- Number Of Circuits
- 1
- On Off Operations
- 14
- Operating Temperature Max
- 40°F
- 104°C
- Operating Temperature Min
- -40°C
- -40°F
- Operation Mode
- 7 day
- Other Certifications
- Title 20
- Packaging Applications
- Interior Lighting; Exterior Lighting; Electric Pumps; Electric Motor Control; Various Other Electrical Loads
- Power Consumption Max W
- 6 W
- Product Depth
- 3.4375 in; 87.3 mm
- Product Height
- 7.875 in; 200 mm
- Product Width
- 5.125 in; 130.2 mm
- Setpoint Program Count
- 14
- Solutions
- Lighting Control; Energy Savings; Comfort & Convenience; Machinery & Pumps
- Switch Type
- SPST
- Unit Carton Description
- EA-Each
- Units Per Pallet
- 120
- Voltage Selection Type
- Selector Switch
- Warranty Period
- 1-Year limited
- Wire Size Max
- #8 AWG
- Wire Size Min
- #14 AWG
- Wiring Option
- Terminals
