ILSCO STL22-1/0SS10P
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

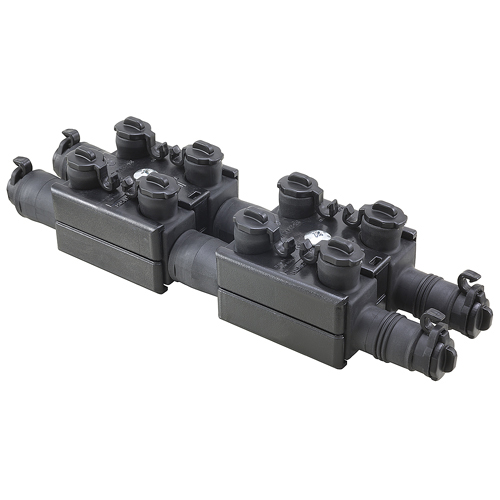

Streetwise Street Light Connector, Dual Rated, Line Conductor Range 1/0-14, Load Range 10-14, 2 Ports Line Side, 2 Ports Load Side, UL, CSA, With De-Ox
ILSCO STL22-1/0SS10P is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Contains DE-OX®
- Yes
- Number of Conductors
- 4
- Number of Poles
- 1
- Number of Ports Tap
- 2
- Number of Ports / Wireways
- 4
- Replacement Part(s)
- R7190C00A - ROCKET SEAL, BP10, R7188C00A - PLUG, WIRE SEAL, R7189C00A - ROCKET SEAL
- Type of Accessory
- NFL3, NFL24, NFL6
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Screw Size
- 3/8
Color
- Color
- Black
Conductor Ranges
- Conductor Range AL Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range AL Solid (Secondary, tap, load)
- 10 Sol - 14 Sol
- Conductor Range AL Stranded (Primary, run, main, line)
- 1/0 Str - 14 Str
- Conductor Range AL Stranded (Secondary, tap, load)
- 10 Str - 14 Str
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range CU Solid (Secondary, tap, load)
- 10 Sol - 14 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 1/0 Str - 14 Str
- Conductor Range CU Stranded (Secondary, tap, load)
- 10 Str - 14 Str
Dimensions
- Drive Size Main
- 3/16
- Drive Type Main
- Internal Hex
- Height BX (IN)
- 2.75
- Height (mm)
- 51.9938
- Length (mm)
- 231.8766
- Weight BX (LB)
- 1.1383
- Width BX (IN)
- 6
- Width (mm)
- 60.7314
Environment and Temperature
- Temperature Rating
- 90°C
- Water tight
- Yes
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 1
- Direct Burial
- Yes
- Dual Rated
- Yes
- NEMA Code
- S-588-4
- UPC Code
- 78366901150
Material and Finish
- Conductor Material
- Aluminum, Copper
- Connector Finish
- Tin
- Insulation
- TPE (thermoplastic elastomer)
- Material
- Aluminum
- Wire Binding Hardware Finish
- Tin
- Wire Binding Hardware Material
- Aluminum
Specifications
- Height
- 2.047 in | 51.9938 mm
- Length
- 9.129 in | 231.8766 mm
- Weight
- 0.605 lbs
- Width
- 2.391 in | 60.7314 mm
Testing Standards
- CSA File Number
- LR-29601
- CSA Standard
- C22.2 No. 198.2
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL Control Number
- E479772
- UL / CULUS Specification
- UL ECIS Listed (Special Purpose Connector - tested to UL 486D, UL 498)
- UL File Number
- E479772
Voltage
- Voltage Rating
- 600 V
