ILSCO SPDS-2
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

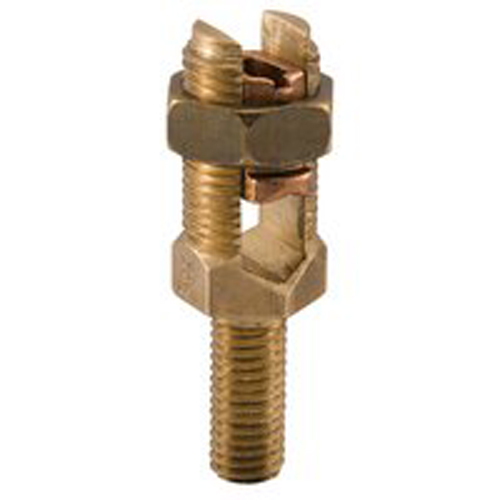

Permaground Bronze Service Post Connector, Male, Conductor Range 5-10 Sol, 5/16-18 x 5/8in Stud Size, Short Stud, Double Conductor, UL, CSA
ILSCO SPDS-2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 2
- Number of Poles
- 1
- Number of Ports / Wireways
- 1
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 5/16-18
- Number of Wire Binding Screws per Port
- 1
Color
- Color
- Bronze
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 4 Sol - 10 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 5 Str - 10 Str
Dimensions
- Drive Size Main
- 17/32, 23/32
- Drive Type Main
- External Hex
- Height BX (IN)
- 2.75
- Mounting Bolt/Stud Size (mm)
- 1311097.2
- Weight BX (LB)
- 5.336
- Width BX (IN)
- 4
Environment and Temperature
- Temperature Rating
- 90°C
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 50
- Direct Burial
- No
- Dual Rated
- No
- NEMA Code
- S-588-3
- UPC Code
- 78366923312
Material and Finish
- Conductor Material
- Copper
- Material
- Bronze
Specifications
- Weight
- 0.104 lbs
Testing Standards
- CSA File Number
- AP-100973-1
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL Control Number
- 8M24
- UL / CULUS Specification
- UL 467 Listed, UL 486A/B Listed
- UL File Number
- E158587
Voltage
- Voltage Rating
- 35 kV
