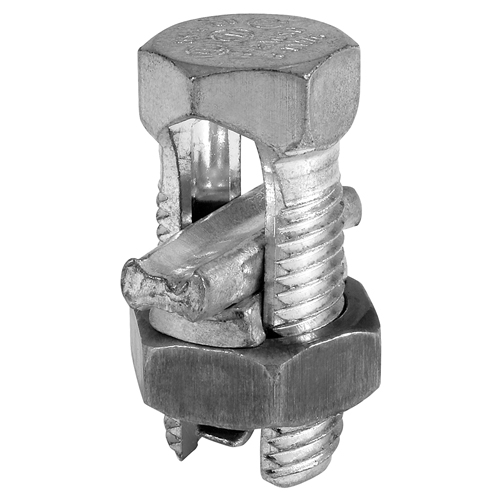

ILSCO SK-1000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Copper Split Bolt, Conductor Range for Equal Main & Tap 1000-350, Tin Plated, UL, CSA
ILSCO SK-1000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 1
- Number of Poles
- 1
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Torque
- 1100
Color
- Color
- Silver
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 1000 kcmil - 350 kcmil
- Conductor Range CU Stranded (Secondary, tap, load)
- 1000 kcmil - 350 kcmil
- Conductor Range for Equal Run & Tap ACSR
- 900 ACSR - 300 ACSR
- Conductor Range for Equal Run & Tap Str
- 1000 kcmil - 350 kcmil
- Conductor Range for Minimum Tap with Maximum Run
- 4/0 Str
Dimensions
- Drive Size Main
- 2-1/4, 2-1/2
- Drive Type Main
- External Hex
- Height BX (IN)
- 2.75
- Height (mm)
- 101.6
- Length (mm)
- 75.1586
- Weight BX (LB)
- 3.2224
- Width BX (IN)
- 4
- Width (mm)
- 65.1002
- Wire Diameter Range Primary (IN)
- 0.682 - 1.162
Environment and Temperature
- Temperature Rating
- 90°C
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 1
- Direct Burial
- No
- Dual Rated
- No
- NEMA Code
- S-588-4
- UPC Code
- 78366981917
Material and Finish
- Conductor Material
- Copper
- Connector Finish
- Tin
- Material
- Copper
- Wire Binding Hardware Finish
- Tin
- Wire Binding Hardware Material
- Copper
Specifications
- Height
- 4 in | 101.6 mm
- Length
- 2.959 in | 75.1586 mm
- Weight
- 0.90563410325539 lbs
- Width
- 2.563 in | 65.1002 mm
Testing Standards
- CSA File Number
- LR-701570
- CSA Standard
- C22.2 No. 188, C22.2 No. 65
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL Control Number
- 460C
- UL / CULUS Specification
- UL 486A/B Listed
- UL File Number
- E6207
Voltage
- Voltage Rating
- 35 kV
