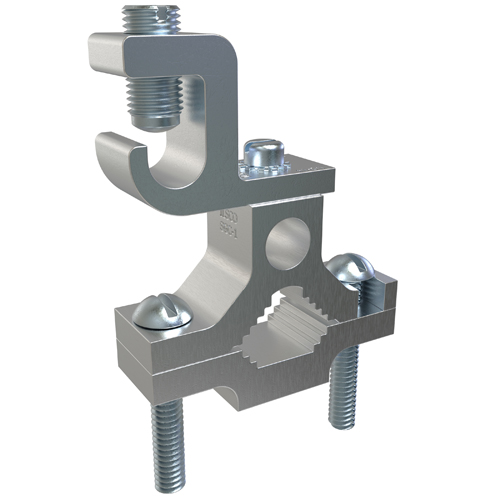

ILSCO SGC-1/0
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Permaground Aluminum Ground Clamp, Dual Rated, Conductor Range 1/0-14, Pipe Sizes 1/2 to 1in, UL
ILSCO SGC-1/0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 1
- Number of Ports / Wireways
- 1
- Wire Orientation
- Perpendicular, Parallel
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
Bolt and Screw Sizes
- Clamping Bolt Size
- 1/4-20
- Clamping Bolt Size (mm)
- 36068
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Screw Size
- #10
- Wire Binding Torque
- 1/0 - 6 AWG = 45, 8 AWG = 40, 10 - 14 AWG = 35
Conductor Ranges
- Conductor Range AL Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range AL Stranded (Primary, run, main, line)
- 1/0 Str - 14 Str
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 1/0 Str - 14 Str
- NPS/IPS Pipe Size
- 1, 3/4, 1/2
Dimensions
- Drive Type Main
- Slotted
- Height BX (IN)
- 2.75
- Height (mm)
- 82.6516
- Length (mm)
- 58.801
- Weight BX (LB)
- 7.0169
- Width BX (IN)
- 6
- Width (mm)
- 17.4752
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 25
- Direct Burial
- No
- Dual Rated
- Yes
- NEMA Code
- S-573-2
- UPC Code
- 78366981450
Material and Finish
- Clamping Hardware Finish
- Zinc Clear Trivalent Chromate
- Clamping Hardware Material
- Steel
- Conductor Material
- Aluminum, Copper
- Connector Finish
- Clear
- Material
- Aluminum
- Wire Binding Hardware Finish
- Zinc Clear Trivalent Chromate
- Wire Binding Hardware Material
- Steel
Specifications
- Height
- 3.254 in | 82.6516 mm
- Length
- 2.315 in | 58.801 mm
- Weight
- 0.27 lbs
- Width
- 0.688 in | 17.4752 mm
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL Control Number
- 667P
- UL / CULUS Specification
- UL 467 Listed
- UL File Number
- E34440
