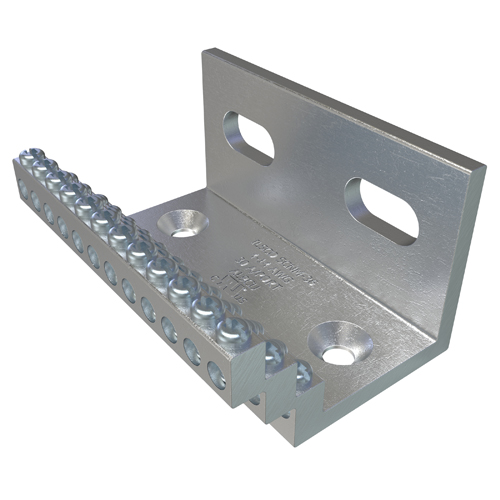

ILSCO SCNM-36
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Aluminum Solar Combiner Node, Dual Rated, Main Conductor Range 4-14, Tap Range 1000-6, 36 Main Ports, 1-4 Tap Ports, Tin Plated, UL
ILSCO SCNM-36 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Mounting Hole Type
- Thru
- Number of Conductors
- 1
- Number of Conductors per Port Main
- 1
- Number of Conductors per Port Tap
- 1
- Number of Mounting Holes
- 2
- Number of Poles
- 1
- Number of Ports Tap
- 3, 4, 2, 1
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 11/32
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Screw Size
- 1/4
- Wire Binding Torque
- 8 AWG = 25, 10 - 14 AWG = 20, 4 - 6 AWG = 35
Color
- Color
- Silver
Conductor Ranges
- Conductor Range AL Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range AL Stranded (Primary, run, main, line)
- 4 Str - 14 Str
- Conductor Range AL Stranded (Secondary, tap, load)
- 1000 kcmil - 6 Str
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 4 Str - 14 Str
- Conductor Range CU Stranded (Secondary, tap, load)
- 1000 kcmil - 6 Str
Dimensions
- Dimension G (IN)
- 0.618
- Dimension G (mm)
- 15.6972
- Drive Type Main
- Slotted
- Height BX (IN)
- 2.75
- Height (mm)
- 57.15
- Length (mm)
- 107.5944
- Mounting Hole Diameter (IN)
- 0.343
- Mounting Hole Diameter (mm)
- 8.7122
- Mounting Hole Spacing (IN)
- 3
- Mounting Hole Spacing (mm)
- 76.2
- Weight BX (LB)
- 0.9336
- Width BX (IN)
- 5
- Width (mm)
- 74.295
Environment and Temperature
- Temperature Rating
- 90°C
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 1
- Dual Rated
- Yes
- NEMA Code
- S-588-3
- UPC Code
- 78366996046
Material and Finish
- Conductor Material
- Aluminum, Copper
- Connector Finish
- Tin
- Material
- Aluminum
- Wire Binding Hardware Finish
- Zinc Clear Trivalent Chromate
- Wire Binding Hardware Material
- Steel
Specifications
- Height
- 2.25 in | 57.15 mm
- Length
- 4.236 in | 107.5944 mm
- Weight
- 0.768 lbs
- Width
- 2.925 in | 74.295 mm
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 486A/B Recognized
- UL File Number
- E6207
Voltage
- Voltage Rating
- 2000 V
