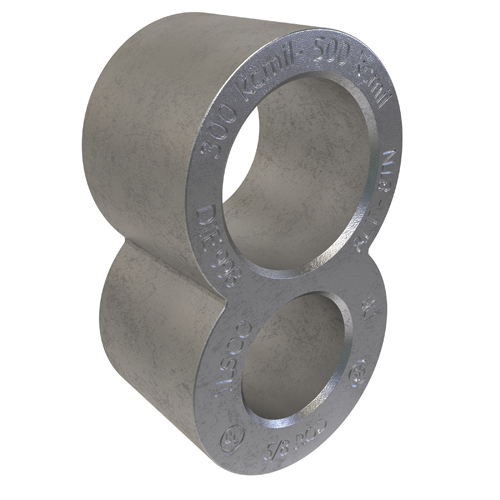

ILSCO RLT-8TN
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Permaground Copper Grounding Connector, Main Conductor Range 500-300, Tap Range 500-300, Ground Rod Size 5/8in, UL, CSA
ILSCO RLT-8TN is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Barrel Marking
- Hard
- ILSCOs Die Catalog Number
- ILD-998
- ILSCOs Die Index Number
- 1011, 998
Additional Technical Specifications
- Conductor Type
- Stranded
Color
- Color
- Silver
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 500 kcmil - 300 kcmil
- Conductor Range CU Stranded (Secondary, tap, load)
- 500 kcmil - 300 kcmil
- Ground Rod Size
- 5/8
Dimensions
- Height BX (IN)
- 0
- Height (mm)
- 54.4068
- Length (mm)
- 31.3436
- Weight BX (LB)
- 7.38
- Width BX (IN)
- 0
- Width (mm)
- 22.225
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 20
- Direct Burial
- Yes
- Dual Rated
- No
- NEMA Code
- S-573-3
- UPC Code
- 78366971577
Material and Finish
- Conductor Material
- Copper
- Connector Finish
- Tin
- Material
- Copper
Specifications
- Height
- 2.142 in | 54.4068 mm
- Length
- 1.234 in | 31.3436 mm
- Weight
- 0.368585743298328 lbs
- Width
- 0.875 in | 22.225 mm
Testing Standards
- CSA File Number
- LR-5465
- CSA Standard
- C22.2 No. 41
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL Control Number
- 667P
- UL / CULUS Specification
- UL 467 Listed
- UL File Number
- E34440
