ILSCO PG810-S-Z
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

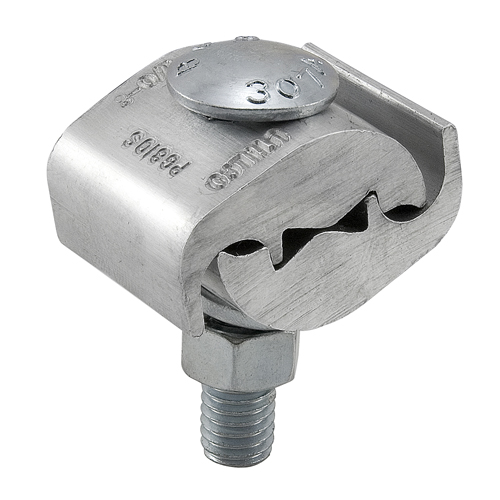

Aluminum Parallel Groove Clamp, Dual Rated, Conductor Range 1/0-8 Sol, 3/8in Steel Bolt
ILSCO PG810-S-Z is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Contains DE-OX®
- Yes
- Number of Conductors
- 2
- Number of Poles
- 1
- Wire Orientation
- Parallel
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
Bolt and Screw Sizes
- Clamping Bolt Size
- 3/8
- Number of Wire Binding Screws per Port
- 1
Color
- Color
- Silver
Conductor Ranges
- Conductor Range AL Solid (Primary, run, main, line)
- 1/0 Sol - 8 Sol
- Conductor Range AL Stranded (Primary, run, main, line)
- 1/0 Str - 8 Str
- Conductor Range CU Solid (Primary, run, main, line)
- 1/0 Sol - 8 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 1/0 Str - 8 Str
Dimensions
- Drive Size Main
- 9/16
- Drive Type Main
- Carriage
- Height BX (IN)
- 7
- Height (mm)
- 56.0832
- Length (mm)
- 28.575
- Weight BX (LB)
- 11.016
- Width BX (IN)
- 8
- Width (mm)
- 42.5196
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 50
- Direct Burial
- No
- Dual Rated
- Yes
- NEMA Code
- S-588-4
- UPC Code
- 78366973012
Material and Finish
- Clamping Hardware Material
- Steel
- Conductor Material
- Aluminum, Copper
- Connector Finish
- Clear
- Material
- Aluminum
- Wire Binding Hardware Finish
- Tin
- Wire Binding Hardware Material
- Aluminum
Specifications
- Height
- 2.208 in | 56.0832 mm
- Length
- 1.125 in | 28.575 mm
- Weight
- 0.214 lbs
- Width
- 1.674 in | 42.5196 mm
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
