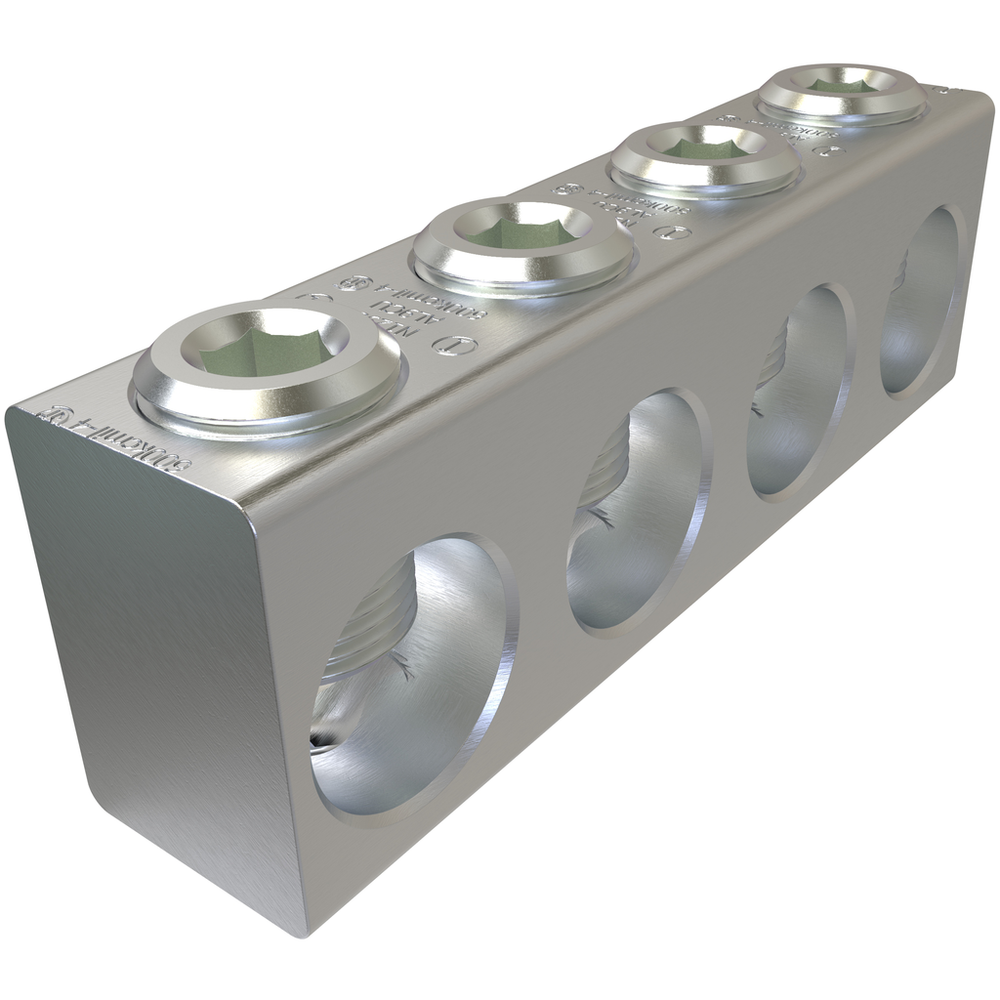

ILSCO PED-4-600-Z
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Aluminum Multi-Tap Connector, Dual Rated, Conductor Range 600-4, 4 Ports, UL
ILSCO PED-4-600-Z is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Contains DE-OX®
- No
- Number of Conductors
- 4
- Number of Poles
- 1
- Number of Ports / Wireways
- 4
Additional Technical Specifications
- Conductor Type
- Stranded
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Screw Size
- 13/16
Color
- Color
- Silver
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 600 kcmil - 4 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 600 kcmil - 4 Str
Dimensions
- Drive Size Main
- 3/8
- Drive Type Main
- Internal Hex
- Height BX (IN)
- 3.125
- Height (mm)
- 41.275
- Length (mm)
- 127.7874
- Weight BX (LB)
- 3.7632
- Width BX (IN)
- 3.875
- Width (mm)
- 28.575
Environment and Temperature
- Temperature Rating
- 90°C
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 3
- Direct Burial
- No
- Dual Rated
- Yes
- NEMA Code
- S-588-4
- UPC Code
- 78366970020
Material and Finish
- Conductor Material
- Aluminum, Copper
- Connector Finish
- Tin
- Material
- Aluminum
- Wire Binding Hardware Finish
- Tin
- Wire Binding Hardware Material
- Aluminum
Specifications
- Height
- 1.625 in | 41.275 mm
- Length
- 5.031 in | 127.7874 mm
- Weight
- 0.699483580005116 lbs
- Width
- 1.125 in | 28.575 mm
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL Control Number
- 453G
- UL / CULUS Specification
- UL 486A/B Listed
- UL File Number
- E6207
Voltage
- Voltage Rating
- 600 V
