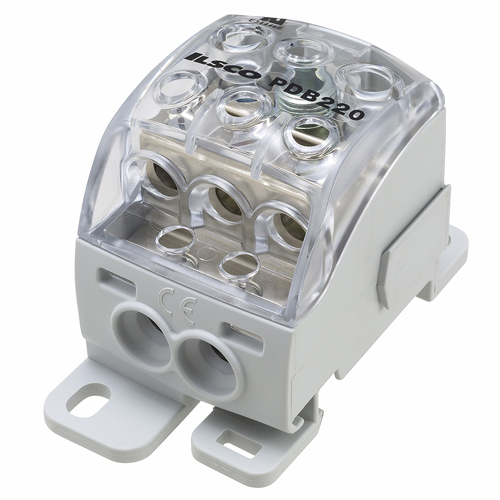

ILSCO PDB-220
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
ILSCO Power Distribution Block, Mechanical connection, Copper material, Nickel, Tin plated connector,2 mounting hole(s), mounting bolt/stud size #10 in, UL 1059 Recognized, C22.2 No. 158, C22.2 No. 269.1, C22.2 No. 269.2, Copper Primary Conductor 2/0 Str - 8 Str, Copper Secondary Conductor 10 Sol - 16 Sol and 6 Str - 16 Str, 4 Str - 14 Str, 7 conductors, Drive Type Main 5 mm, 2.5 mm Internal Hex, Drive Type Tap 3 mm Internal Hex, rated for 600 V, primary color White, 1 poles,Touch Safe Power Distribution Block
ILSCO PDB-220 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Bag Quantity
- 1
- Color
- White
- Conductor Material
- Copper,Aluminum
- Conductor Range CU Solid (Secondary, tap, load)
- 10 Sol - 16 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 2/0 Str - 8 Str
- Conductor Range CU Stranded (Secondary, tap, load)
- 6 Str - 16 Str,4 Str - 14 Str
- Conductor Size CU (Primary, run, main, line)
- 2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str
- Conductor Size CU (Secondary, tap, load)
- 4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str,16 Str
- Conductor Type
- Solid,Stranded,Flat
- Connection
- Mechanical
- Connector Finish
- Nickel,Tin
- Contains DE-OX
- FALSE
- CSA File Number
- 264993
- CSA Standard
- C22.2 No. 158,C22.2 No. 269.1,C22.2 No. 269.2
- Drive Size Main
- 5 mm,2.5 mm
- Drive Size Tap
- 3 mm
- Drive Type Main
- Internal Hex
- Drive Type Tap
- Internal Hex
- Dual Rated
- FALSE
- Enclosure Material
- Nylon 6/6
- Flat Conductor Size
- 3.2 x 15.5 mm
- Fuse Required Class CC Amp Rating
- 30 Amps
- Fuse Required Class J Amp Rating
- 60 Amps
- Fuse Required Class RK1 Amp Rating
- 30 Amps
- Fuse Required Class RK5 Amp Rating
- 30 Amps
- Fuse Required Class T Amp Rating
- 60 Amps
- Height (IN)
- 1.984
- High SCCR Conductor Range Line
- 1/0 Str - 10 Str
- High SCCR Conductor Range Load
- 6 Str - 14 Str,4 Str - 14 Str
- Length (IN)
- 2.933
- Material
- Copper
- Mounting Bolt/Stud Size (mm)
- 254
- Mounting Hole Type
- Thru
- Mounting Method
- DIN Rail,Panel
- Number of Conductors
- 7
- Number of Mounting Holes
- 2
- Number of Poles
- 1
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- RUS Listed
- FALSE
- Short Circuit Current Rating (SCCR)
- 200 kA,100 kA with 60 A class G Fuse
- Temperature Rating
- 90°C
- UL / CULUS Specification
- UL 1059 Recognized
- UNSPSC Code
- 39121408
- UPC Code
- 78366959499
- Voltage Rating
- 600 V
- Weight (LB)
- 0.425
- Width (IN)
- 1.614
