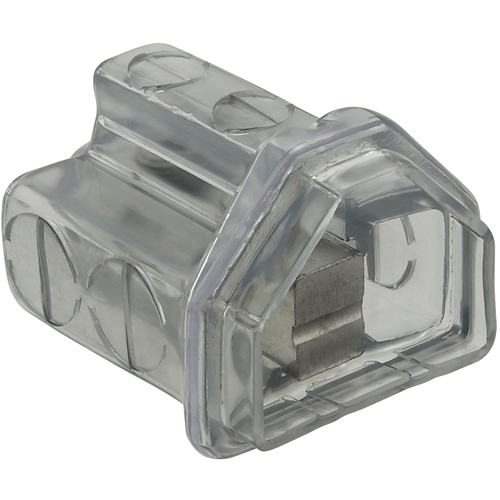

ILSCO PCT-6-4
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Cleartap Insulated Multi-Tap Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 4 Str - 14 Str and 10 Sol - 14 Sol, Contains DE-OX®, 6 conductors, 6 ports/wireways, Plastisol insulation, Drive Type Main Slotted, rated for 600 V, primary color Clear, 1 poles,Cleartap Insulated Aluminum Multi-Tap Connector, Dual Rated, Conductor Range 4-14, 6 Ports, Tin Plated, UL, CSA
ILSCO PCT-6-4 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Bag Quantity
- 1
- Color
- Clear
- Conductor Material
- Copper,Aluminum
- Conductor Range AL Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range AL Stranded (Primary, run, main, line)
- 4 Str - 14 Str
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 4 Str - 14 Str
- Conductor Size AL (Primary, run, main, line)
- 10 Sol,12 Sol,14 Sol,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
- Conductor Size CU (Primary, run, main, line)
- 10 Sol,12 Sol,14 Sol,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
- Conductor Type
- Solid,Stranded
- Connection
- Mechanical
- Connector Amperage Rating CU (Derated where applicable)
- 95 Amps
- Connector Finish
- Tin
- Contains DE-OX
- TRUE
- CSA File Number
- LR-29601
- CSA Standard
- C22.2 No. 65-03
- Drive Type Main
- Slotted
- Dual Rated
- TRUE
- Environmental Conditions
- Cold temperature rated to -45⁰C
- Flammability Rating
- Insulation rated per UL 94
- Height (IN)
- 1.538
- Height (mm)
- 39.0652
- Insulation
- Plastisol
- Length (IN)
- 3.368
- Length (mm)
- 85.5472
- Material
- Aluminum
- Max Insulation OD (IN)
- 0.342
- Max Insulation OD (mm)
- 8.6868
- Number of Conductors
- 6
- Number of Poles
- 1
- Number of Ports Main
- 6
- Number of Ports / Wireways
- 6
- Number of Usable Ports
- 6
- Number of Wire Binding Screws per Port
- 1
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- Temperature Rating
- 90°C
- UL Control Number
- 453G
- UL / CULUS Specification
- UL 486A/B Listed
- UL File Number
- E6207
- UNSPSC Code
- 39121408
- UPC Code
- 78366970034
- Upsell
- PBTD-6-4-F
- Voltage Rating
- 600 V
- Weight (LB)
- 0.125
- Width (IN)
- 1.684
- Width (mm)
- 42.7736
- Wire Binding Hardware Finish
- Gold Zinc Chromate
- Wire Binding Hardware Material
- Steel
- Wire Binding Screw Size
- 4-Jan
- Wire Binding Torque
- 10 - 18 AWG = 20,8 AWG = 25,4 - 6 AWG = 35,2 AWG = 40
