ILSCO PBTS-9-500
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

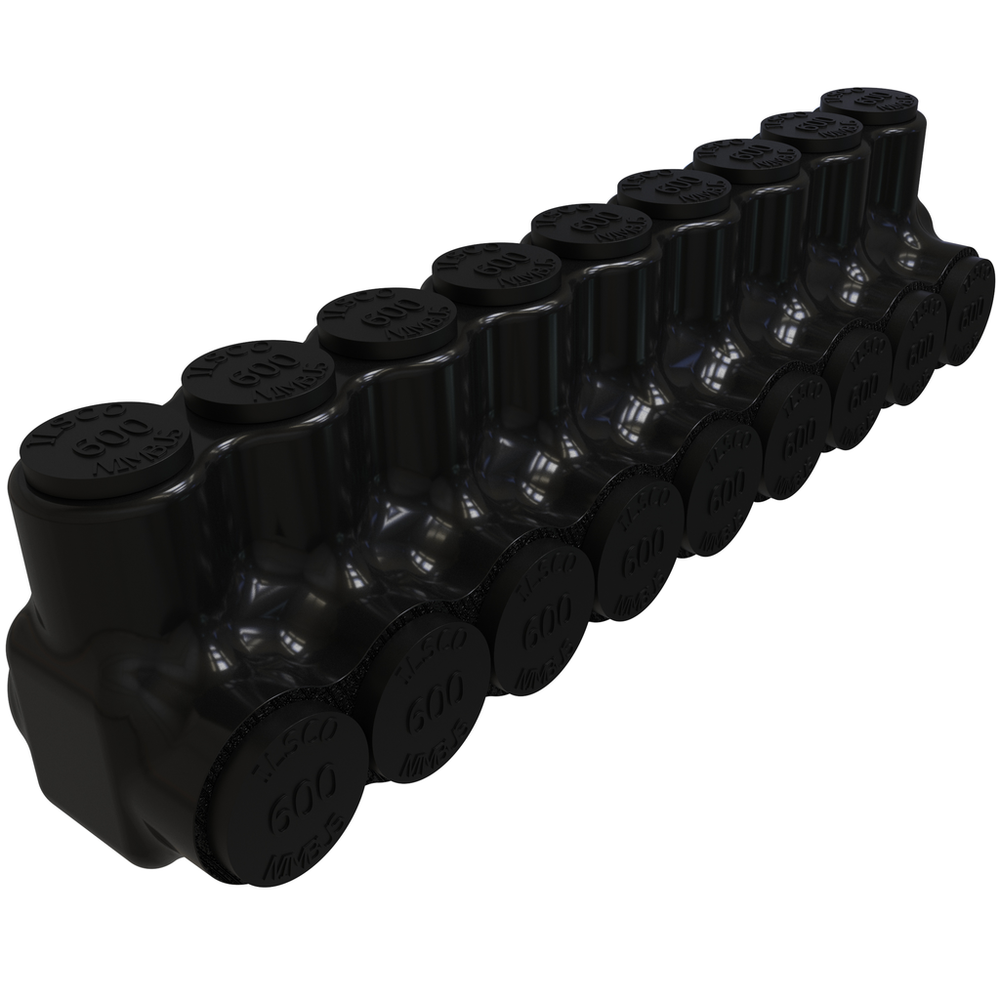

Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 600-4, 9 Ports, Single Sided Entry, Tin Plated, UL, CSA
ILSCO PBTS-9-500 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Contains DE-OX®
- Yes
- Number of Conductors
- 9
- Number of Poles
- 1
- Number of Ports / Wireways
- 9
- Number of Usable Ports
- 9
- Number of Usable Taps
- 9
- Replacement Part(s)
- PORTPLUG-500, SCREWCAP-500
Additional Technical Specifications
- Conductor Type
- Stranded
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Screw Size
- 13/16
- Wire Binding Torque
- 375
Color
- Cap Color Main
- Black
- Cap Color Tap
- Black
- Color
- Black
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 600 kcmil - 4 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 600 kcmil - 4 Str
Dimensions
- Drive Size Main
- 3/8
- Drive Type Main
- Internal Hex
- Height BX (IN)
- 3.75
- Height (mm)
- 77.0636
- Length (mm)
- 298.3992
- Max Insulation OD (IN)
- 1.115
- Max Insulation OD (mm)
- 28.321
- Weight BX (LB)
- 5.0954
- Width BX (IN)
- 6.5
- Width (mm)
- 65.4812
Environment and Temperature
- Environmental Conditions
- Cold temperature rated to -45°C
- Flammability Rating
- Insulation rated per UL 94
- Temperature Rating
- 90°C
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 2
- Dual Rated
- Yes
- NEMA Code
- S-588-4
- UPC Code
- 78366908042
Material and Finish
- Conductor Material
- Aluminum, Copper
- Connector Finish
- Tin
- Insulation
- Plastisol
- Material
- Aluminum
- Wire Binding Hardware Finish
- Tin
- Wire Binding Hardware Material
- Aluminum
Specifications
- Height
- 3.034 in | 77.0636 mm
- Length
- 11.748 in | 298.3992 mm
- Weight
- 2.35 lbs
- Width
- 2.578 in | 65.4812 mm
Testing Standards
- CSA File Number
- LR-29601
- CSA Standard
- C22.2 No. 65-03
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL Control Number
- 453G
- UL / CULUS Specification
- UL 486A/B Listed
- UL File Number
- E6207
Voltage
- Voltage Rating
- 600 V
