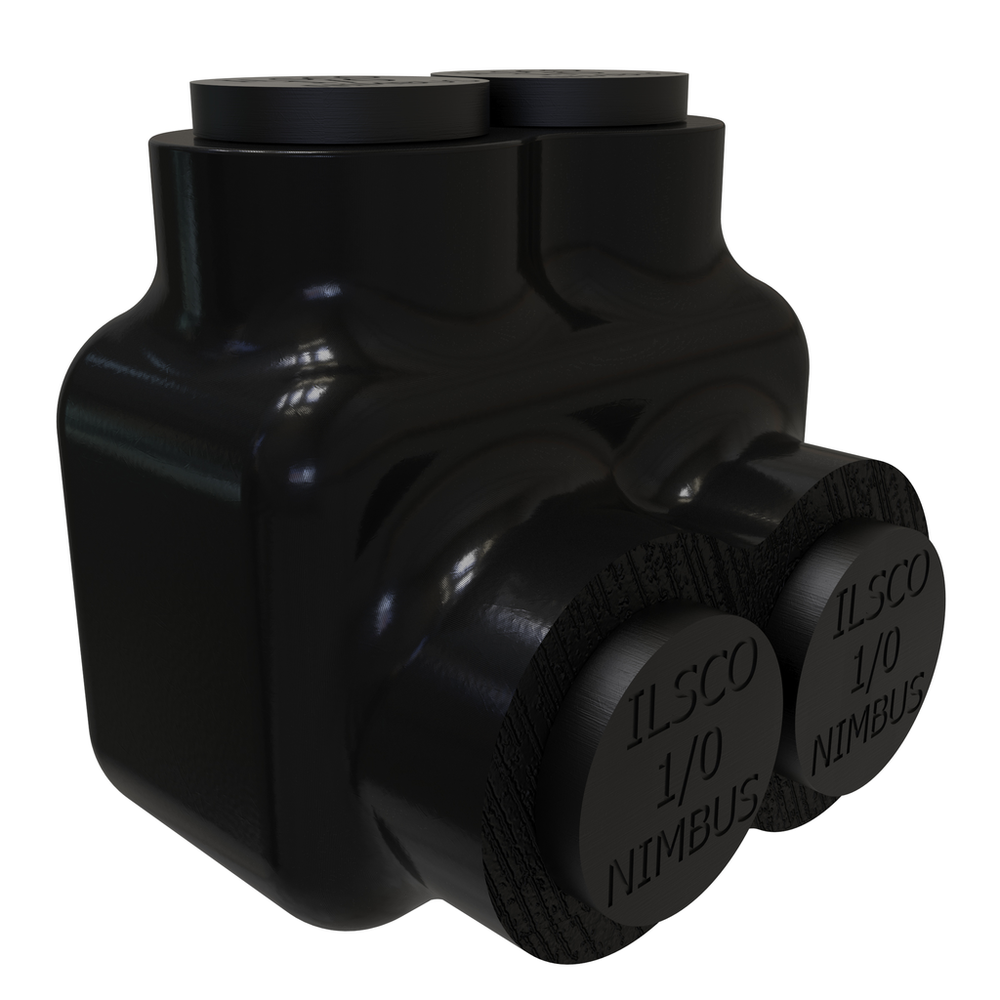

ILSCO PBTS-2-1/0
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 1/0-14, 2 Ports, Single Sided Entry, Tin Plated, UL, CSA
ILSCO PBTS-2-1/0 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Contains DE-OX®
- Yes
- Number of Conductors
- 2
- Number of Poles
- 1
- Number of Ports / Wireways
- 2
- Number of Usable Ports
- 2
- Number of Usable Taps
- 2
- Replacement Part(s)
- PORTPLUG-1/0, SCREWCAP-1/0
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Screw Size
- 3/8
- Wire Binding Torque
- 2/0 - 3 AWG = 50, 10 - 14 AWG = 35, 8 AWG = 40, 4 - 6 AWG = 45
Color
- Cap Color Main
- Black
- Cap Color Tap
- Black
- Color
- Black
Conductor Ranges
- Conductor Range AL Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range AL Stranded (Primary, run, main, line)
- 1/0 Str - 14 Str
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 1/0 Str - 14 Str
Dimensions
- Drive Size Main
- 3/16
- Drive Type Main
- Internal Hex
- Height BX (IN)
- 2
- Height (mm)
- 41.3258
- Max Insulation OD (IN)
- 0.511
- Max Insulation OD (mm)
- 12.9794
- Weight BX (LB)
- 1.7551
- Width BX (IN)
- 6.1875
- Width (mm)
- 40.6146
Environment and Temperature
- Environmental Conditions
- Cold temperature rated to -45°C
- Flammability Rating
- Insulation rated per UL 94
- Temperature Rating
- 90°C
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 12
- Dual Rated
- Yes
- NEMA Code
- S-588-4
- UPC Code
- 78366907924
Material and Finish
- Conductor Material
- Aluminum, Copper
- Connector Finish
- Tin
- Insulation
- Plastisol
- Material
- Aluminum
- Wire Binding Hardware Finish
- Tin
- Wire Binding Hardware Material
- Aluminum
Specifications
- Height
- 1.627 in | 41.3258 mm
- Length
- 1.623 in
- Weight
- 0.134 lbs
- Width
- 1.599 in | 40.6146 mm
Testing Standards
- CSA File Number
- LR-29601
- CSA Standard
- C22.2 No. 65-03
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL Control Number
- 453G
- UL / CULUS Specification
- UL 486A/B Listed
- UL File Number
- E6207
Voltage
- Voltage Rating
- 600 V
