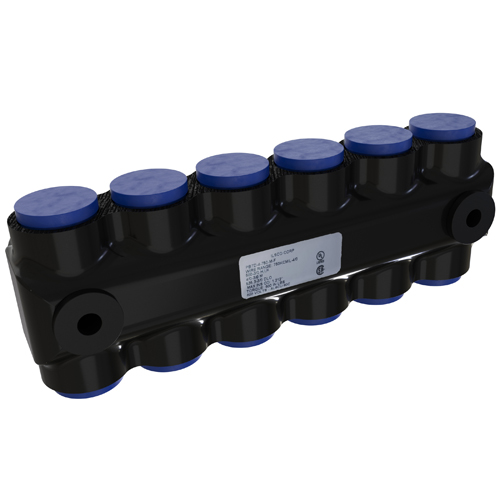

ILSCO PBTD-4-750-M-F
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
ILSCO PBTD-4-750-M-F is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Contains DE-OX®
- Yes
- Mounting Hole Type
- Thru
- Number of Conductors
- 4
- Number of Mounting Holes
- 2
- Number of Poles
- 1
- Number of Ports / Wireways
- 4
- Number of Usable Ports
- 4
- Replacement Part(s)
- Cap
Additional Technical Specifications
- Conductor Type
- Flex, Stranded
- Connector Amperage Rating AL (Derated where applicable)
- See Load Balance Sheet
- Connector Amperage Rating CU (Derated where applicable)
- See Load Balance Sheet
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Screw Size
- 15/16
- Wire Binding Torque
- 500
Color
- Cap Color Main
- Blue
- Cap Color Tap
- Blue
- Color
- Black
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 750 kcmil - 4/0 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 750 kcmil - 4/0 Str
- Flex Conductor Range
- 500-3/0 H,I,K 4/0-3/0 M 535.3-3/0 DLO
Dimensions
- Drive Size Main
- 1/2
- Drive Type Main
- Internal Hex
- Height BX (IN)
- 3.75
- Height (mm)
- 85.3948
- Length (mm)
- 243.332
- Max Insulation OD (IN)
- 1.202
- Max Insulation OD (mm)
- 30.5308
- Mounting Hole Diameter (IN)
- 0.385
- Mounting Hole Spacing (IN)
- 7.8
- Mounting Hole Spacing (mm)
- 198.12
- Weight BX (LB)
- 3.3899
- Width BX (IN)
- 6.375
- Width (mm)
- 86.487
Environment and Temperature
- Environmental Conditions
- Cold temperature rated to -45°C
- Flammability Rating
- Insulation rated per UL 94
- Temperature Rating
- 90°C
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 1
- Dual Rated
- Yes
- NEMA Code
- S-588-4
- UPC Code
- 78366972450
Material and Finish
- Conductor Material
- Copper, Aluminum
- Connector Finish
- Tin
- Insulation
- Plastisol
- Material
- Aluminum
- Wire Binding Hardware Finish
- Tin
- Wire Binding Hardware Material
- Aluminum
Specifications
- Height
- 3.362 in | 85.3948 mm
- Length
- 9.58 in | 243.332 mm
- Weight
- 3.076 lbs
- Width
- 3.405 in | 86.487 mm
Testing Standards
- CSA File Number
- LR-29601
- CSA Standard
- C22.2 No. 65-03
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL Control Number
- 453G
- UL / CULUS Specification
- UL 486A/B Listed
- UL File Number
- E6207
Voltage
- Voltage Rating
- 600 V
Williams Automation sells ILSCO parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
