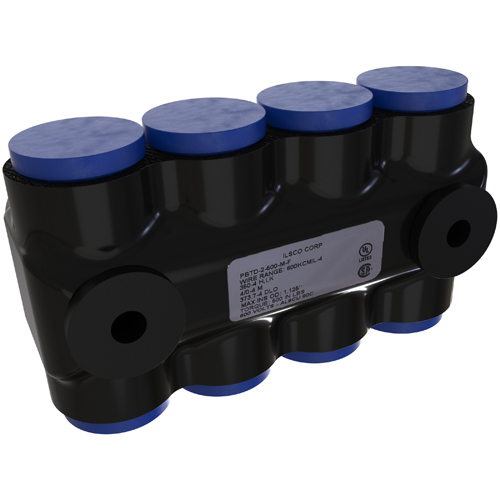

ILSCO PBTD-2-500-M-F
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Nimbus4Flex Insulated Flexible Aluminum Multi-Tap Connector, Conductor Range 600-4, Flex 350-4 H,I,K 4/0-4 M 373.7-4 DLO, 2 Ports, Dual Sided Entry, Mountable, Tin Plated, UL, CSA
ILSCO PBTD-2-500-M-F is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Contains DE-OX®
- Yes
- Mounting Hole Type
- Thru
- Number of Conductors
- 2
- Number of Mounting Holes
- 2
- Number of Poles
- 1
- Number of Ports / Wireways
- 2
- Number of Usable Ports
- 2
- Replacement Part(s)
- Cap
Additional Technical Specifications
- Conductor Type
- Stranded, Flex
- Connector Amperage Rating AL (Derated where applicable)
- 385 Amps
- Connector Amperage Rating CU (Derated where applicable)
- 475 Amps
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Screw Size
- 13/16
- Wire Binding Torque
- 375
Color
- Cap Color Main
- Blue
- Cap Color Tap
- Blue
- Color
- Black
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 600 kcmil - 4 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 600 kcmil - 4 Str
- Flex Conductor Range
- 350-4 H,I,K 4/0-4 M 373.7-4 DLO
Dimensions
- Drive Size Main
- 3/8
- Drive Type Main
- Internal Hex
- Height BX (IN)
- 3.75
- Height (mm)
- 81.026
- Length (mm)
- 135.7122
- Max Insulation OD (IN)
- 1.115
- Max Insulation OD (mm)
- 28.321
- Mounting Hole Diameter (IN)
- 0.34
- Mounting Hole Spacing (IN)
- 3.843
- Mounting Hole Spacing (mm)
- 97.6122
- Weight BX (LB)
- 4.611
- Width BX (IN)
- 6.375
- Width (mm)
- 76.9874
Environment and Temperature
- Environmental Conditions
- Cold temperature rated to -45°C
- Flammability Rating
- Insulation rated per UL 94
- Temperature Rating
- 90°C
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 3
- Dual Rated
- Yes
- NEMA Code
- S-588-4
- UPC Code
- 78366972445
Material and Finish
- Conductor Material
- Copper, Aluminum
- Connector Finish
- Tin
- Insulation
- Plastisol
- Material
- Aluminum
- Wire Binding Hardware Finish
- Tin
- Wire Binding Hardware Material
- Aluminum
Specifications
- Height
- 3.19 in | 81.026 mm
- Length
- 5.343 in | 135.7122 mm
- Weight
- 1.432 lbs
- Width
- 3.031 in | 76.9874 mm
Testing Standards
- CSA File Number
- LR-29601
- CSA Standard
- C22.2 No. 65-03
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL Control Number
- 453G
- UL / CULUS Specification
- UL 486A/B Listed
- UL File Number
- E6207
Voltage
- Voltage Rating
- 600 V
