ILSCO PB4-600-2N
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

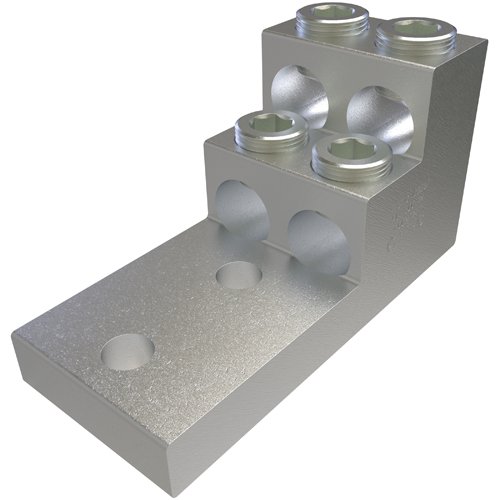

Aluminum Panelboard Lug, Dual Rated, Conductor Range 600-2, 4 Ports, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA
ILSCO PB4-600-2N is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Contains DE-OX®
- No
- Mounting Hole Type
- Thru
- Number of Conductors
- 4
- Number of Mounting Holes
- 2
- Number of Poles
- 1
- Number of Ports / Wireways
- 4
- Wire Orientation
- Perpendicular
Additional Technical Specifications
- Conductor Type
- Stranded
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 1/2
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Screw Size
- 15/16
- Wire Binding Torque
- 500
Color
- Color
- Silver
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 600 kcmil - 2 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 600 kcmil - 2 Str
Dimensions
- Dimension G (IN)
- 0.625
- Dimension G (mm)
- 15.875
- Drive Size Main
- 1/2
- Drive Type Main
- Internal Hex
- Height BX (IN)
- 3.125
- Mounting Bolt/Stud Size (mm)
- 304.8
- Mounting Hole Diameter (IN)
- 0.563
- Mounting Hole Diameter (mm)
- 14.3002
- Mounting Hole Spacing (IN)
- 1.75
- Mounting Hole Spacing (mm)
- 44.45
- Tang Length (IN)
- 3.125
- Tang Length (mm)
- 79.375
- Tang Thickness (IN)
- 0.75
- Tang Thickness (mm)
- 19.05
- Tang Width (IN)
- 2.469
- Tang Width (mm)
- 62.7126
- Weight BX (LB)
- 2.3356
- Width BX (IN)
- 3.875
Environment and Temperature
- Temperature Rating
- 90°C
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 1
- Direct Burial
- No
- Dual Rated
- Yes
- NEMA Code
- S-588-3
- UPC Code
- 78366917977
Material and Finish
- Conductor Material
- Copper, Aluminum
- Connector Finish
- Tin
- Material
- Aluminum
- Wire Binding Hardware Finish
- Tin
- Wire Binding Hardware Material
- Aluminum
Specifications
- Height
- 3 in
- Length
- 5.687 in
- Weight
- 2.202 lbs
- Width
- 2.469 in
Testing Standards
- CSA File Number
- LR-29601
- CSA Standard
- C22.2 No. 65-03
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- ROHS Indicator
- RES
- UL / CULUS Specification
- UL 486A/B Listed
- UL File Number
- E6207
Voltage
- Voltage Rating
- 35 kV
