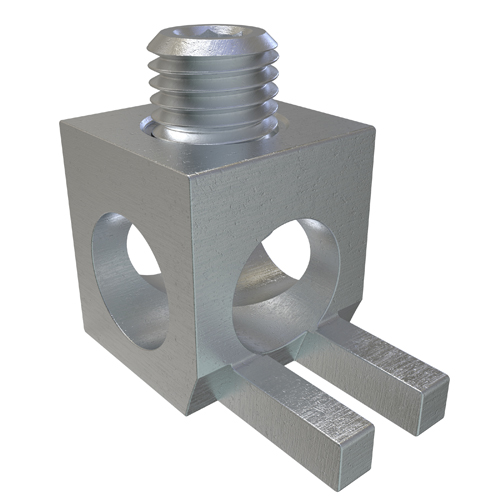

ILSCO NBST-2/0
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Aluminum Neutral Bar Adapter, Conductor Range 2/0-14, Tin Plated, UL
ILSCO NBST-2/0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 1
- Number of Poles
- 1
- Number of Ports Tap
- 1
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Screw Size
- 7/16
Color
- Color
- Silver
Conductor Ranges
- Conductor Range AL Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range AL Stranded (Primary, run, main, line)
- 2/0 Str - 14 Str
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 2/0 Str - 14 Str
Dimensions
- Drive Size Main
- 3/16
- Drive Type Main
- Internal Hex
- Height (mm)
- 19.812
- Length (mm)
- 28.956
- Tang Length (IN)
- 0.44
- Tang Length (mm)
- 11.176
- Tang Thickness (IN)
- 0.16
- Tang Thickness (mm)
- 4.064
- Tang Width (IN)
- 0.46
- Tang Width (mm)
- 11.684
- Width (mm)
- 17.78
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 50
- Dual Rated
- Yes
- NEMA Code
- S-588-3
- UPC Code
- 78366920436
Material and Finish
- Conductor Material
- Aluminum, Copper
- Connector Finish
- Tin
- Material
- Aluminum
- Wire Binding Hardware Finish
- Tin
- Wire Binding Hardware Material
- Aluminum
Specifications
- Height
- 0.78 in | 19.812 mm
- Length
- 1.14 in | 28.956 mm
- Weight
- 0.021 lbs
- Width
- 0.7 in | 17.78 mm
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- ROHS Indicator
- IND
- UL / CULUS Specification
- UL 467 Listed, UL 486A/B Recognized
- UL File Number
- E6207
