Description

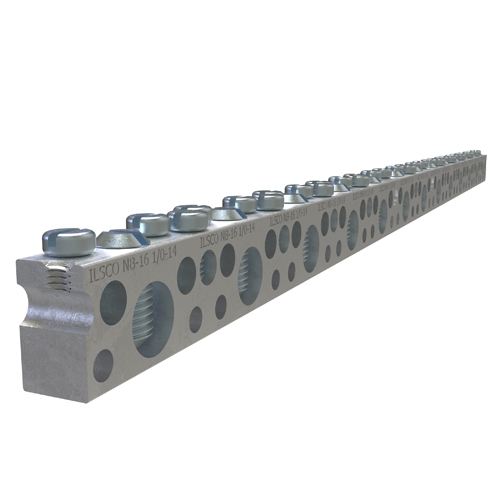

Copper Neutral Bar, Large Conductor Range 1/0-14, Small Range 6-14, 13 Large Ports, 36 Small Ports, 2 Holes, #10 Bolt, UL, CSA
ILSCO NBCE-1336-2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Mounting Hole Type
- Thru
- Number of Conductors
- 1
- Number of Mounting Holes
- 2
- Number of Poles
- 1
- Number of Ports Tap
- 36
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- #10
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Screw Size
- 5/16
Color
- Color
- Silver
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range CU Solid (Secondary, tap, load)
- 10 Sol - 14 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 1/0 Str - 14 Str
- Conductor Range CU Stranded (Secondary, tap, load)
- 6 Str - 14 Str
Dimensions
- Dimension G (IN)
- 5.82
- Dimension G (mm)
- 147.828
- Drive Type Main
- Slotted
- Height BX (IN)
- 8
- Height (mm)
- 18.6436
- Length (mm)
- 385.0132
- Mounting Bolt/Stud Size (mm)
- 254
- Mounting Hole Diameter (IN)
- 0.203
- Mounting Hole Diameter (mm)
- 5.1562
- Mounting Hole Position (IN)
- 20 & 28
- Mounting Hole Spacing (IN)
- 2.344
- Mounting Hole Spacing (mm)
- 59.5376
- Weight BX (LB)
- 18.332
- Width BX (IN)
- 6.5
- Width (mm)
- 9.525
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 20
- Dual Rated
- No
- NEMA Code
- S-588-3
- UPC Code
- 78366900589
Material and Finish
- Conductor Material
- Copper
- Connector Finish
- Tin
- Material
- Copper
- Wire Binding Hardware Finish
- Zinc Clear Trivalent Chromate
- Wire Binding Hardware Material
- Steel
Specifications
- Height
- 0.734 in | 18.6436 mm
- Length
- 15.158 in | 385.0132 mm
- Weight
- 0.869 lbs
- Width
- 0.375 in | 9.525 mm
Testing Standards
- CSA File Number
- LR-29601
- CSA Standard
- C22.2 No. 65-03
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 467 Listed, UL 486A/B Recognized
- UL File Number
- E6207
Voltage
- Voltage Rating
- 35 kV
