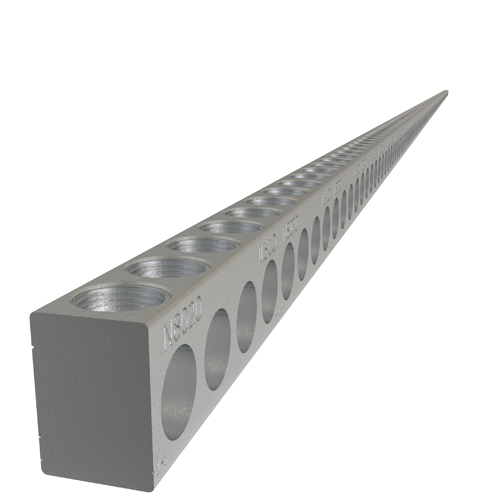

ILSCO NBAS-192-0-A

Additional Class Attributes

• Connection
  • Mechanical
• Mounting Hole Type
  • Thru
• Number of Conductors
  • 192
• Number of Poles
  • 1
• Number of Ports / Wireways
  • 192
• Number of Usable Ports
  • 192
• Type of Accessory
  • NBST-2/0

Additional Technical Specifications

• Conductor Type
  • Solid, Stranded

Bolt and Screw Sizes

• Mounting Bolt/Stud Size
  • #10
• Number of Wire Binding Screws per Port
  • 1
• Wire Binding Screw Size
  • 1/4

Color

• Color
  • Silver

Conductor Ranges

• Conductor Range AL Solid (Primary, run, main, line)
  • 10 Sol - 14 Sol
• Conductor Range AL Stranded (Primary, run, main, line)
  • 4 Str - 14 Str
• Conductor Range CU Solid (Primary, run, main, line)
  • 10 Sol - 14 Sol
• Conductor Range CU Stranded (Primary, run, main, line)
  • 4 Str - 14 Str

Dimensions

• Drive Type Main
  • Slotted
• Height BX (IN)
  • 2.5
• Height (mm)
  • 13.8938
• Length (mm)
  • 1524
• Mounting Bolt/Stud Size (mm)
  • 254
• Weight BX (LB)
  • 9.446
• Width BX (IN)
  • 2.5
• Width (mm)
  • 7.9248

General

• Bag Quantity
  • 1
• Carton Quantity Description
  • STD PACK QTY 15
• Dual Rated
  • Yes
• NEMA Code
  • S-588-3
• UPC Code
  • 78366900564

Material and Finish

• Conductor Material
  • Copper, Aluminum
• Connector Finish
  • Tin
• Material
  • Aluminum
• Wire Binding Hardware Finish
  • Zinc Clear Trivalent Chromate
• Wire Binding Hardware Material
  • Steel

Specifications

• Height
  • 0.547 in | 13.8938 mm
• Length
  • 60 in | 1524 mm
• Weight
  • 1.81723901211269 lbs
• Width
  • 0.312 in | 7.9248 mm

Testing Standards

• CSA File Number
  • LR-29601
• CSA Standard
  • C22.2 No. 65-03
• Prop65 Compliance
  • This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• UL / CULUS Specification
  • UL 467 Listed, UL 486A/B Recognized
• UL File Number
  • E6207

Voltage

• Voltage Rating
  • 35 kV
