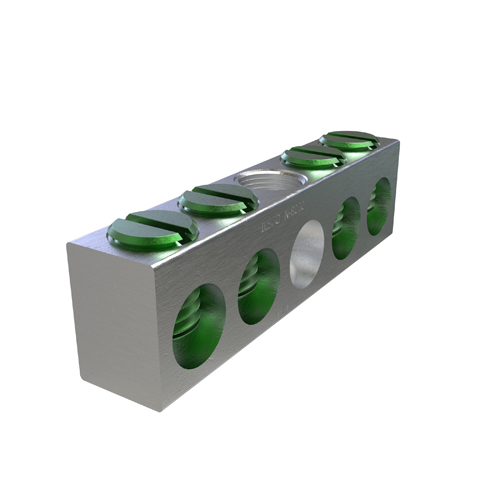

ILSCO NBAS-004-1-B
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Aluminum Neutral Bar, Dual Rated, Conductor Range 4-14, 4 Ports, 1 Hole, #10 Bolt, Headless Slot Drive, UL, CSA
ILSCO NBAS-004-1-B is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Mounting Hole Type
- Thru
- Number of Conductors
- 4
- Number of Mounting Holes
- 1
- Number of Poles
- 1
- Number of Ports / Wireways
- 5
- Number of Usable Ports
- 4
- Type of Accessory
- NBST-2/0
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- #10
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Screw Size
- 1/4
- Wire Binding Torque
- 10 - 18 AWG = 20, 2 AWG = 40, 8 AWG = 25, 4 - 6 AWG = 35
Color
- Color
- Silver
Conductor Ranges
- Conductor Range AL Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range AL Stranded (Primary, run, main, line)
- 4 Str - 14 Str
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 4 Str - 14 Str
Dimensions
- Dimension G (IN)
- 0.804
- Dimension G (mm)
- 20.4216
- Drive Type Main
- Slotted
- Height BX (IN)
- 1.9
- Height (mm)
- 11.0998
- Mounting Bolt/Stud Size (mm)
- 254
- Mounting Hole Diameter (IN)
- 0.203
- Mounting Hole Position (IN)
- 3
- Weight BX (LB)
- 0.595
- Width BX (IN)
- 4
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 20
- Dual Rated
- Yes
- NEMA Code
- S-588-3
- UPC Code
- 78366900554
Material and Finish
- Conductor Material
- Aluminum, Copper
- Connector Finish
- Tin
- Material
- Aluminum
- Wire Binding Hardware Finish
- Green Zinc
- Wire Binding Hardware Material
- Steel
Specifications
- Height
- 0.437 in | 11.0998 mm
- Length
- 1.608 in
- Weight
- 0.025 lbs
- Width
- 0.312 in
Testing Standards
- CSA File Number
- LR-29601
- CSA Standard
- C22.2 No. 65-03
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 467 Listed, UL 486A/B Recognized
- UL File Number
- E6207
Voltage
- Voltage Rating
- 35 kV
