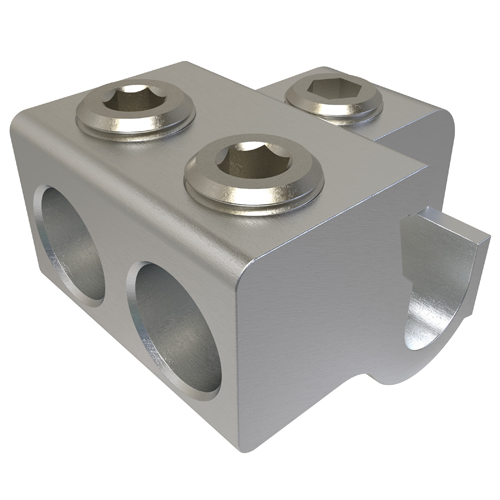

ILSCO M2GTT-350-350
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Aluinum Multiple Tap Connector, Dual Rated, Main Conductor Range 350-4/0, Tap Range 350-6, 2 Tap Ports, Tin Plated
ILSCO M2GTT-350-350 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 3
- Number of Poles
- 1
- Number of Ports Tap
- 2
- Wire Orientation
- Perpendicular
Additional Technical Specifications
- Conductor Type
- Stranded
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Screw Size
- 11/16
- Wire Binding Torque
- 275
Color
- Color
- Silver
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 350 kcmil - 4/0 Str
- Conductor Range AL Stranded (Secondary, tap, load)
- 350 kcmil - 6 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 350 kcmil - 4/0 Str
- Conductor Range CU Stranded (Secondary, tap, load)
- 350 kcmil - 6 Str
Dimensions
- Drive Size Main
- 5/16
- Drive Size Tap
- 5/16
- Drive Type Main
- Internal Hex
- Drive Type Tap
- Internal Hex
- Height BX (IN)
- 2.25
- Height (mm)
- 42.9514
- Length (mm)
- 61.5188
- Weight BX (LB)
- 1.5904
- Width BX (IN)
- 5
- Width (mm)
- 50.8
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 1
- Direct Burial
- No
- Dual Rated
- Yes
- NEMA Code
- S-588-4
- UPC Code
- 78366962259
Material and Finish
- Conductor Material
- Aluminum, Copper
- Connector Finish
- Tin
- Material
- Aluminum
- Wire Binding Hardware Finish
- Anodized
- Wire Binding Hardware Material
- Aluminum
Specifications
- Height
- 1.691 in | 42.9514 mm
- Length
- 2.422 in | 61.5188 mm
- Weight
- 0.69 lbs
- Width
- 2 in | 50.8 mm
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
