Description

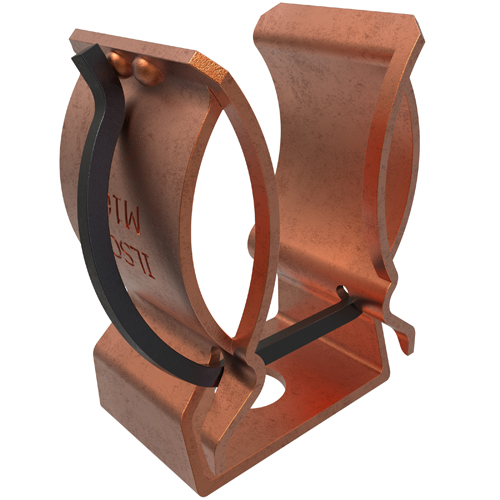

Copper Fuse Clip, Wire Reinforced, 600 Volts, 60 Amps
ILSCO M-164 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Clip
- Fuse Type
- Ferrule
- Mounting Hole Type
- Thru
Additional Technical Specifications
- Connector Amperage Rating CU (Derated where applicable)
- 60 Amps
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- #8
Color
- Color
- Copper
Dimensions
- Dimension G (IN)
- 0.312
- Dimension G (mm)
- 7.9248
- Height BX (IN)
- 2.25
- Height (mm)
- 35.6362
- Length (mm)
- 33.9852
- Mounting Bolt/Stud Size (mm)
- 203.2
- Mounting Hole Diameter (IN)
- 0.281
- Mounting Hole Diameter (mm)
- 7.1374
- Thickness (IN)
- 0.04
- Thickness (mm)
- 1.016
- Weight BX (LB)
- 1.9
- Width BX (IN)
- 5
- Width (mm)
- 18.2626
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 24
- NEMA Code
- 0-000-1
- UPC Code
- 78366960763
Material and Finish
- Connector Finish
- Tin
- Material
- Copper
Specifications
- Height
- 1.403 in | 35.6362 mm
- Length
- 1.338 in | 33.9852 mm
- Weight
- 0.041 lbs
- Width
- 0.719 in | 18.2626 mm
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Voltage
- Voltage Rating
- 600 V
