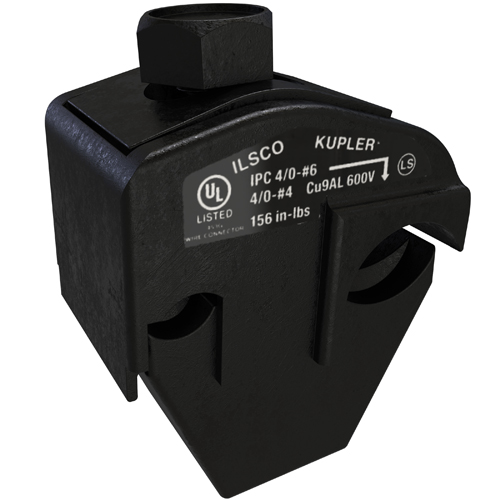

ILSCO IPC-4/0-6
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 4/0-4, Tap Range 6-14, Tin Plated, UL, CSA
ILSCO IPC-4/0-6 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Contains DE-OX®
- No
- Number of Conductors
- 2
- Number of Poles
- 1
- Number of Ports Tap
- 1
- Wire Orientation
- Parallel
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
- Connector Amperage Rating AL (Derated where applicable)
- 60 Amps
- Connector Amperage Rating CU (Derated where applicable)
- 75 Amps
Bolt and Screw Sizes
- Clamping Bolt Size
- 5/16-18
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Screw Size
- 5/16
- Wire Binding Torque
- 156
Color
- Color
- Black
Conductor Ranges
- Conductor Range AL Solid (Secondary, tap, load)
- 10 Sol - 14 Sol
- Conductor Range AL Stranded (Primary, run, main, line)
- 4/0 Str - 4 Str
- Conductor Range AL Stranded (Secondary, tap, load)
- 6 Str - 14 Str
- Conductor Range CU Solid (Secondary, tap, load)
- 10 Sol - 14 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 4/0 Str - 4 Str
- Conductor Range CU Stranded (Secondary, tap, load)
- 6 Str - 14 Str
Dimensions
- Drive Size Main
- 1/2
- Drive Type Main
- External Hex
- Height BX (IN)
- 1.75
- Height (mm)
- 48.9712
- Length (mm)
- 28.39466
- Max Insulation OD (IN)
- 0.615
- Max Insulation OD (mm)
- 15.621
- Weight BX (LB)
- 1.28
- Width BX (IN)
- 4.5
Environment and Temperature
- Temperature Rating
- 90°C
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 12
- Direct Burial
- No
- Dual Rated
- Yes
- NEMA Code
- S-588-4
- UPC Code
- 78366953269
Material and Finish
- Clamping Hardware Finish
- Tin
- Clamping Hardware Material
- Steel
- Conductor Material
- Copper, Aluminum
- Connector Finish
- Tin
- Insulation
- Nylon
- Material
- Copper
Specifications
- Height
- 1.928 in | 48.9712 mm
- Length
- 1.1179 in | 28.39466 mm
- Weight
- 0.252 lbs
- Width
- 1.431 in
Testing Standards
- CSA File Number
- LR-29601
- CSA Standard
- C22.2 No. 65-03
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- ROHS Indicator
- RES
- UL / CULUS Specification
- UL 486A/B Listed
- UL File Number
- E6207
Voltage
- Voltage Rating
- 600 V
