Description

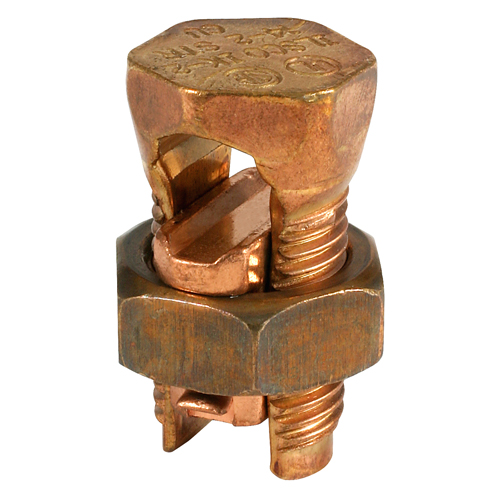

Three Wire Copper Split Bolt, Conductor Range for Equal Main & Tap 6 Sol - 10 Sol, UL, CSA
ILSCO IK3-6 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 3
- Number of Poles
- 1
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Color
- Color
- Copper
Conductor Ranges
- Conductor Range for Equal Run & Tap Sol
- 6 Sol - 10 Sol
- Conductor Range for Equal Run & Tap Str
- 6 Str - 8 Str
- Conductor Range for Minimum Tap with Maximum Run
- 16 Sol
Dimensions
- Drive Size Main
- 1/2, 5/8
- Drive Type Main
- External Hex
- Height BX (IN)
- 2
- Weight BX (LB)
- 5.647
- Width BX (IN)
- 6.1875
- Wire Diameter Range Primary (IN)
- 0.102 - 0.162
Environment and Temperature
- Temperature Rating
- 90°C
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 100
- Direct Burial
- Yes
- Dual Rated
- No
- NEMA Code
- S-588-4
- UPC Code
- 78366981355
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Specifications
- Weight
- 0.055 lbs
Testing Standards
- CSA File Number
- LR-701570
- CSA Standard
- C22.2 No. 188, C22.2 No. 65
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL Control Number
- 460C
- UL / CULUS Specification
- UL 467 Listed, UL 486A/B Listed
- UL File Number
- E12822
Voltage
- Voltage Rating
- 35 kV
