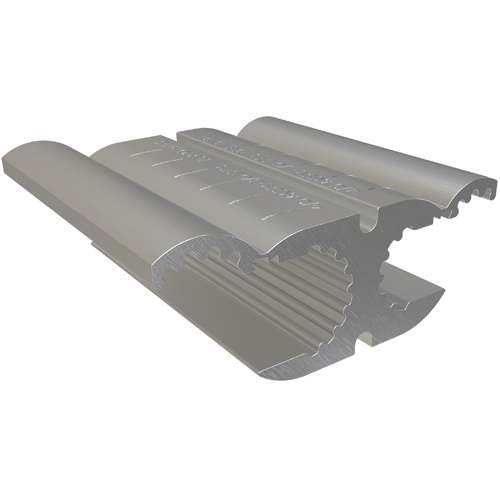

ILSCO HT-5
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Aluminum Compression Tap Connector, Dual Rated, Main Conductor Range 4/0-3/0, Tap Range 2/0-1/0, CSA
ILSCO HT-5 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Barrel Marking
- Hard
- ILSCOs Die Index Number
- D3
Additional Technical Specifications
- Conductor Type
- Stranded
Color
- Color
- Silver
Conductor Ranges
- Conductor Range ACSR (primary, run, main, line)
- 2/0 ACSR - 1/0 ACSR
- Conductor Range ACSR (Secondary, tap, load)
- 4/0 ACSR - 3/0 ACSR
- Conductor Range AL Stranded (Primary, run, main, line)
- 4/0 Str - 3/0 Str
- Conductor Range AL Stranded (Secondary, tap, load)
- 2/0 Str - 1/0 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 4/0 Str - 3/0 Str
- Conductor Range CU Stranded (Secondary, tap, load)
- 2/0 Str - 1/0 Str
Dimensions
- Height BX (IN)
- 5.5
- Height (mm)
- 60.325
- Length (mm)
- 25.0698
- Width BX (IN)
- 3.5625
- Width (mm)
- 57.15
Environment and Temperature
- Temperature Rating
- 90°C
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 25
- Direct Burial
- No
- Dual Rated
- Yes
- NEMA Code
- S-588-1
- UPC Code
- 78366946130
Material and Finish
- Conductor Material
- Copper, Aluminum
- Material
- Aluminum
Specifications
- Height
- 2.375 in | 60.325 mm
- Length
- 0.987 in | 25.0698 mm
- Weight
- 0.176 lbs
- Width
- 2.25 in | 57.15 mm
Testing Standards
- CSA File Number
- AP-5465
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Voltage
- Voltage Rating
- 35 kV
