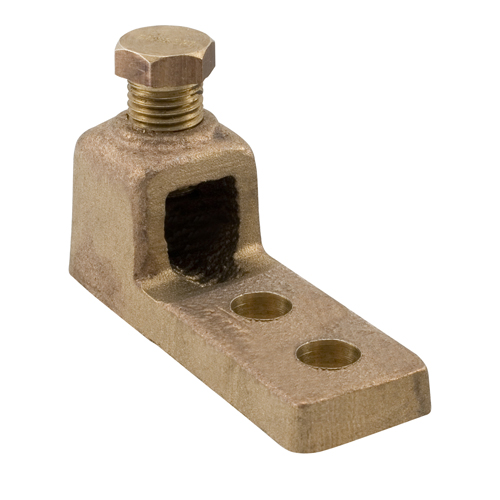

ILSCO HL35-2N
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Cast Bronze Mechanical Lug, Conductor Range 350-250, 1 Port, 2 Holes, 1/2in Bolt Size, UL
ILSCO HL35-2N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Contains DE-OX®
- No
- Mounting Hole Type
- Thru
- Number of Conductors
- 1
- Number of Mounting Holes
- 2
- Number of Poles
- 1
- Number of Ports / Wireways
- 1
Additional Technical Specifications
- Conductor Type
- Stranded
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 1/2
- Number of Wire Binding Screws per Port
- 1
Color
- Color
- Bronze
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 350 kcmil - 250 kcmil
Dimensions
- Drive Size Main
- 1/2
- Drive Type Main
- External Hex
- Height BX (IN)
- 2
- Mounting Bolt/Stud Size (mm)
- 304.8
- Weight BX (LB)
- 5.6315
- Width BX (IN)
- 6.1875
Environment and Temperature
- Temperature Rating
- 90°C
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 6
- Direct Burial
- No
- Dual Rated
- No
- NEMA Code
- S-588-3
- UPC Code
- 78366946030
Material and Finish
- Conductor Material
- Copper
- Material
- Cast bronze
Specifications
- Weight
- 0.9141 lbs
Testing Standards
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL Control Number
- 8M24
- UL / CULUS Specification
- UL 486A/B Listed
- UL File Number
- E158587
Voltage
- Voltage Rating
- 35 kV
