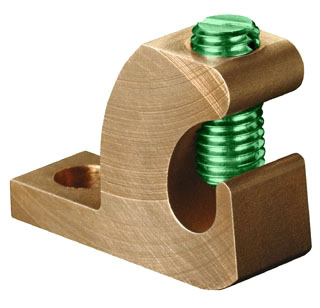

ILSCO GBL-4DB
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Permaground Copper Lay-in Groud Lug, Conductor Size 4-14, #10 Bolt Size, Slotted Head
ILSCO GBL-4DB is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Connection
- Mechanical
- Mounting Hole Type
- Thru
- Mounting Kit Hardware Part #
- GBL-MHU, GBL-MH1
- Number of Conductors
- 1
- Number of Mounting Holes
- 1
- Number of Ports / Wireways
- 1
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- #10
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Screw Size
- 1/4
- Wire Binding Torque
- 2 AWG = 40, 4 - 6 AWG = 35, 10 - 18 AWG = 20, 8 AWG = 25
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 4 Str - 14 Str
Dimensions
- Drive Type Main
- Slotted
- Height BX (IN)
- 2.25
- Mounting Bolt/Stud Size (mm)
- 254
- Mounting Hole Diameter (IN)
- 0.218
- Mounting Hole Diameter (mm)
- 5.5372
- Tang Length (IN)
- 0.47
- Tang Length (mm)
- 11.938
- Tang Thickness (IN)
- 0.185
- Tang Thickness (mm)
- 4.699
- Tang Width (IN)
- 0.375
- Tang Width (mm)
- 9.525
- Weight BX (LB)
- 3.9
- Width BX (IN)
- 5
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 50
- Direct Burial
- Yes
- Dual Rated
- No
- NEMA Code
- S-573-2
- UPC Code
- 78366996017
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
- Wire Binding Hardware Finish
- Nickel Strick, Zinc, Green Dye
- Wire Binding Hardware Material
- Stainless steel
Specifications
- Height
- 0.825 in
- Length
- 1.15 in
- Weight
- 0.06 lbs
- Width
- 0.375 in
Testing Standards
- CSA File Number
- LR-29601
- CSA Standard
- C22.2 No. 65-03
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL Control Number
- 667P
- UL / CULUS Specification
- UL 467 Listed
- UL File Number
- E34440
