ILSCO FX-B4E36N
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

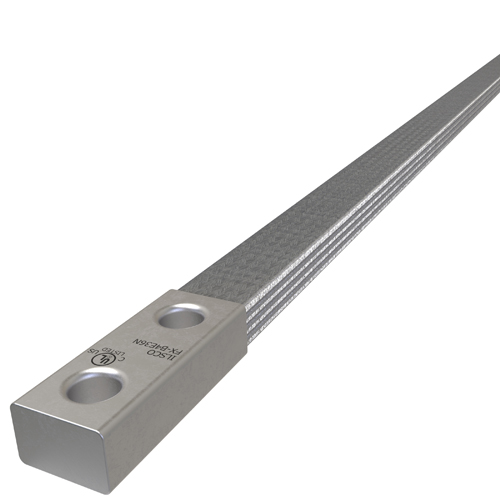

Copper Flex Braid Connector, Conductor Equivalent Size 616, 4 Braids, 36in, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL/cUL
ILSCO FX-B4E36N is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Circular Mils/Braid
- 672000
- Mounting Hole Type
- Thru
- Number of Braids
- 4
- Number of Mounting Holes
- 2
- Shape Of Conductor
- Flat
Additional Technical Specifications
- Conductor Type
- Braid
- Connector Amperage Rating CU (Derated where applicable)
- 875 Amps
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 1/2
Conductor Ranges
- Wire Equivalent
- 616 kcmil
Dimensions
- Dimension G (IN)
- 0.62
- Dimension G (mm)
- 15.748
- Height BX (IN)
- 4
- Length of Ferrule (IN)
- 3
- Length of Ferrule (mm)
- 76.2
- Mounting Bolt/Stud Size (mm)
- 304.8
- Mounting Hole Diameter (IN)
- 0.56
- Mounting Hole Diameter (mm)
- 14.224
- Mounting Hole Spacing (IN)
- 1.75
- Mounting Hole Spacing (mm)
- 44.45
- Weight BX (LB)
- 4.392
- Width BX (IN)
- 4
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 1
- Dual Rated
- No
- NEMA Code
- 0-000-1
- UPC Code
- 78366901683
Material and Finish
- Conductor Material
- Copper
- Connector Finish
- Tin
- Material
- Copper
Specifications
- Height
- 0.8 in
- Length
- 36 in
- Weight
- 8.98642525607736 lbs
- Width
- 1.25 in
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL Control Number
- 667P
- UL / CULUS Specification
- UL/cUL 467 Listed
- UL File Number
- E34440
