Description

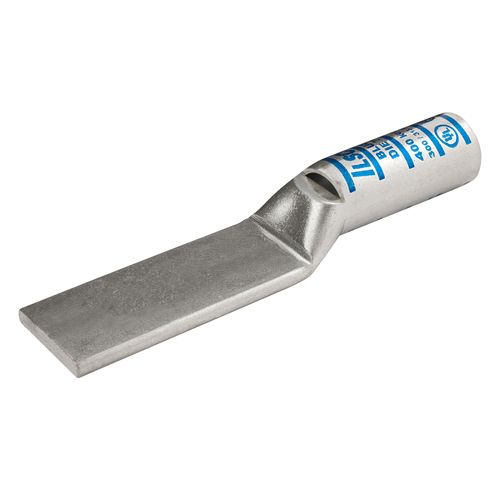

Surecrimp Copper Compression Lug, Conductor Size 4/0, No Hole, Long Barrel, Sight Window, Tin Plated, UL, CSA
ILSCO CLWU-4/0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Barrel Marking
- Ink
- Barrel Type
- Long
- Connecting Angle
- 180°
- Connection
- Compression
- Contains DE-OX®
- No
- Flared End
- No
- ILSCOs Die Catalog Number
- ILD-54
- ILSCOs Die Index Number
- I-54
- Narrow Tang
- No
- Number of Mounting Holes
- 0
- Sight Window
- Yes
- Slotted
- No
- Tang End Shape
- Square
- Undrilled
- Yes
Additional Technical Specifications
- Conductor Type
- Flex, Stranded
Color
- Color
- Silver
- Color Code
- Purple
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 4/0 Str
- Expanded Conductor Range
- 4/0 Str - 1 Str
- Flex Conductor Range
- 3/0 G,H,I,K,M,DLO
Dimensions
- Barrel Length (IN)
- 1.5
- Barrel Length (mm)
- 38.1
- Dimension G (mm)
- 0
- Height BX (IN)
- 2
- Height (mm)
- 18.5166
- Inside Diameter (IN)
- 0.546
- Inside Diameter (mm)
- 13.8684
- Length (mm)
- 126.7714
- Mounting Hole Diameter (mm)
- 0
- Mounting Hole Spacing (mm)
- 0
- Outside Diameter (IN)
- 0.689
- Outside Diameter (mm)
- 17.5006
- Strip Length (mm)
- 39.6748
- Tang Length (IN)
- 3
- Tang Length (mm)
- 76.2
- Tang Thickness (IN)
- 0.141
- Tang Thickness (mm)
- 3.5814
- Tang Width (IN)
- 0.999
- Tang Width (mm)
- 25.3746
- Weight BX (LB)
- 2.0893
- Width BX (IN)
- 6.188
- Width (mm)
- 25.3746
Environment and Temperature
- Temperature Rating
- 90°C
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 10
- Direct Burial
- Yes
- Dual Rated
- No
- NEMA Code
- S-588-3
- UPC Code
- 78366968969
Material and Finish
- Conductor Material
- Copper
- Connector Finish
- Tin
- Material
- Copper
Specifications
- Height
- 0.729 in | 18.5166 mm
- Length
- 4.991 in | 126.7714 mm
- Weight
- 0.218911489637719 lbs
- Width
- 0.999 in | 25.3746 mm
Testing Standards
- CSA File Number
- LR-29601
- CSA Standard
- C22.2 No. 65-03
- NEBS Rating
- Level 3
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL Control Number
- 453G
- UL / CULUS Specification
- UL 467 Listed, UL 486A/B Listed
- UL File Number
- E6207
Voltage
- Voltage Rating
- 35 kV
