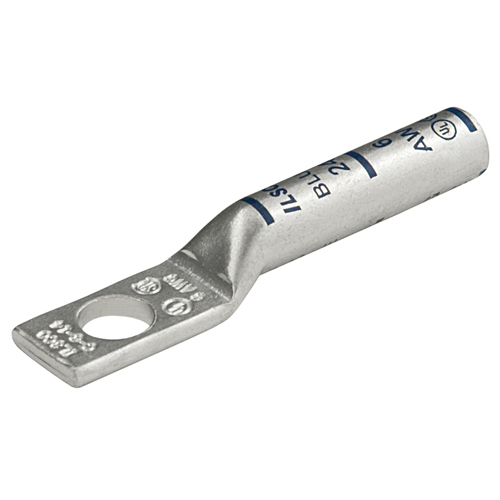

ILSCO CLNS-650-38
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 3/8 in, UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper Primary Conductor 650 kcmil, Contains DE-OX®, no sight window, Square tang end, flex conductor range 500 G,H,I, K,M 535.3 DLO, rated for 35 kV, die color code Pink, primary color Silver, die index I-99,Surecrimp Copper Compression Lug, Conductor Size 650, 1 Hole, 3/8in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
ILSCO CLNS-650-38 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Bag Quantity
- 1
- Barrel Length (IN)
- 2.687
- Barrel Length (mm)
- 68.2498
- Barrel Marking
- Ink
- Barrel Type
- Long
- Color
- Silver
- Conductor Material
- Copper
- Conductor Range CU Stranded (Primary, run, main, line)
- 650 kcmil
- Conductor Size CU (Primary, run, main, line)
- 650 kcmil
- Conductor Type
- Stranded,Flex
- Connecting angle
- 180°
- Connection
- Compression
- Connector Finish
- Tin
- Contains DE-OX
- TRUE
- CrossSell
- ILD-99, DE-OX-8OZ, TB-6DF1000-P
- CSA File Number
- LR-29601
- CSA Standard
- C22.2 No. 65-03
- Die Color Code
- Pink
- Dimension G (IN)
- 0.414
- Dimension G (mm)
- 10.5156
- Direct Burial
- FALSE
- Dual Rated
- FALSE
- Expanded Conductor Range
- 650 kcmil - 350 kcmil
- Expanded Conductor Size
- 650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil
- Flared End
- FALSE
- Flex Conductor Range
- 500 G,H,I, K,M 535.3 DLO
- Flex Conductor Size (Class DLO)
- 535.3 DLO
- Flex Conductor Size (Class G)
- 500 G
- Flex Conductor Size (Class H)
- 500 H
- Flex Conductor Size (Class I)
- 500 I
- Flex Conductor Size (Class K)
- 500 K
- Flex Conductor Size (Class M)
- 500 M
- Height (IN)
- 1.262
- Height (mm)
- 32.0548
- ILSCOs Die Catalog Number
- ILD-99
- Inside Diameter (IN)
- 0.958
- Inside Diameter (mm)
- 24.3332
- Length (IN)
- 4.431
- Length (mm)
- 112.5474
- Material
- Copper
- Mounting Bolt/Stud Size
- 3/8/2020
- Mounting Bolt/Stud Size (mm)
- 965.2
- Mounting Hole Diameter (IN)
- 0.406
- Mounting Hole Diameter (mm)
- 10.3124
- Mounting Hole Spacing (mm)
- 0
- Mounting Hole Type
- Thru
- Narrow Tang
- FALSE
- NEBS Rating
- Level 3
- Number of Mounting Holes
- 1
- Outside Diameter (IN)
- 1.217
- Outside Diameter (mm)
- 30.9118
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- Sight Window
- FALSE
- Slotted
- FALSE
- Strip Length (mm)
- 69.8246
- Tang End Shape
- Square
- Tang Length (IN)
- 0.875
- Tang Length (mm)
- 22.225
- Tang Thickness (IN)
- 0.259
- Tang Thickness (mm)
- 6.5786
- Tang Width (IN)
- 1.764
- Tang Width (mm)
- 44.8056
- Temperature Rating
- 90°C
- UL Control Number
- 453G
- UL / CULUS Specification
- UL 486A/B Listed
- UL File Number
- E6207
- Undrilled
- FALSE
- UNSPSC Code
- 39121448
- UPC Code
- 78366964726
- Voltage Rating
- 35 kV
- Weight (LB)
- 0.607423016
- Width (IN)
- 1.764
- Width (mm)
- 44.8056
