ILSCO ALNS-2-516
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

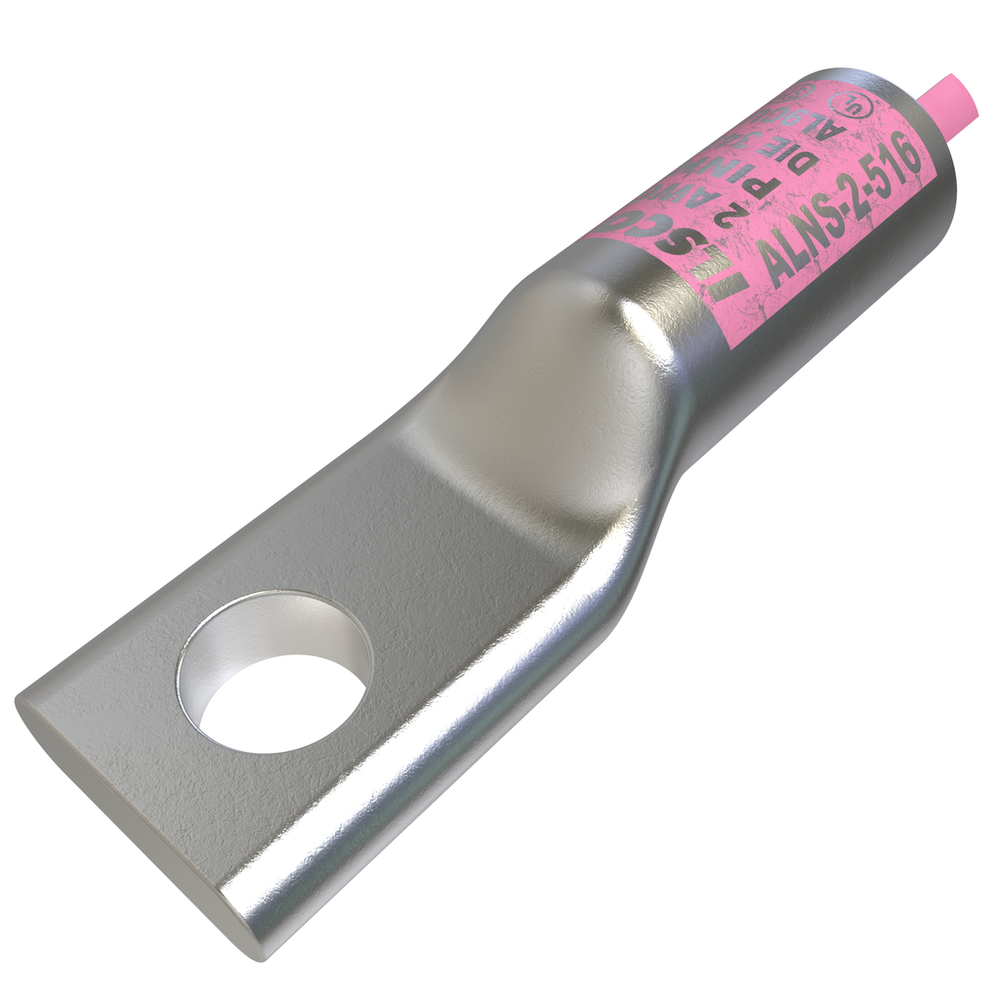

Surecrimp Aluminum Compression Lug, Conductor Size 2, 1 Hole, 5/16in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
ILSCO ALNS-2-516 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Class Attributes
- Barrel Marking
- Hard
- Barrel Type
- Long
- Connecting Angle
- 180°
- Connection
- Compression
- Contains DE-OX®
- Yes
- Flared End
- No
- ILSCOs Die Catalog Number
- ILD-348
- ILSCOs Die Index Number
- 348
- Mounting Hole Type
- Thru
- Narrow Tang
- No
- Number of Mounting Holes
- 1
- Sight Window
- No
- Slotted
- No
- Tang End Shape
- Square
- Undrilled
- No
Additional Technical Specifications
- Conductor Type
- Stranded
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 5/16
Color
- Color
- Silver
- Color Code
- Pink
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 2 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 2 Str
- Expanded Conductor Range
- 2 Str - 6 Str
Dimensions
- Barrel Length (IN)
- 0.97
- Barrel Length (mm)
- 24.638
- Dimension G (IN)
- 0.353
- Dimension G (mm)
- 8.9662
- Height BX (IN)
- 2.25
- Height (mm)
- 14.097
- Inside Diameter (IN)
- 0.307
- Inside Diameter (mm)
- 7.7978
- Length (mm)
- 56.896
- Mounting Hole Diameter (IN)
- 0.343
- Mounting Hole Diameter (mm)
- 8.7122
- Mounting Hole Spacing (mm)
- 0
- Outside Diameter (IN)
- 0.525
- Outside Diameter (mm)
- 13.335
- Strip Length (mm)
- 26.2255
- Tang Length (IN)
- 0.875
- Tang Length (mm)
- 22.225
- Tang Thickness (IN)
- 0.218
- Tang Thickness (mm)
- 5.5372
- Tang Width (IN)
- 0.7
- Tang Width (mm)
- 17.78
- Weight BX (LB)
- 0.63
- Width BX (IN)
- 5
- Width (mm)
- 17.78
Environment and Temperature
- Temperature Rating
- 90°C
General
- Bag Quantity
- 1
- Carton Quantity Description
- STD PACK QTY 20
- Direct Burial
- No
- Dual Rated
- Yes
- NEMA Code
- S-588-3
- UPC Code
- 78366969050
Material and Finish
- Conductor Material
- Aluminum, Copper
- Connector Finish
- Tin
- Material
- Aluminum
Specifications
- Height
- 0.555 in | 14.097 mm
- Length
- 2.24 in | 56.896 mm
- Weight
- 0.027 lbs
- Width
- 0.7 in | 17.78 mm
Testing Standards
- CSA File Number
- LR-29601
- CSA Standard
- C22.2 No. 65-03
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- ROHS Indicator
- IND
- UL Control Number
- 453G
- UL / CULUS Specification
- UL 486A/B Listed
- UL File Number
- E6207
Voltage
- Voltage Rating
- 35 kV
