Hubbell SNAP8200RIGL
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

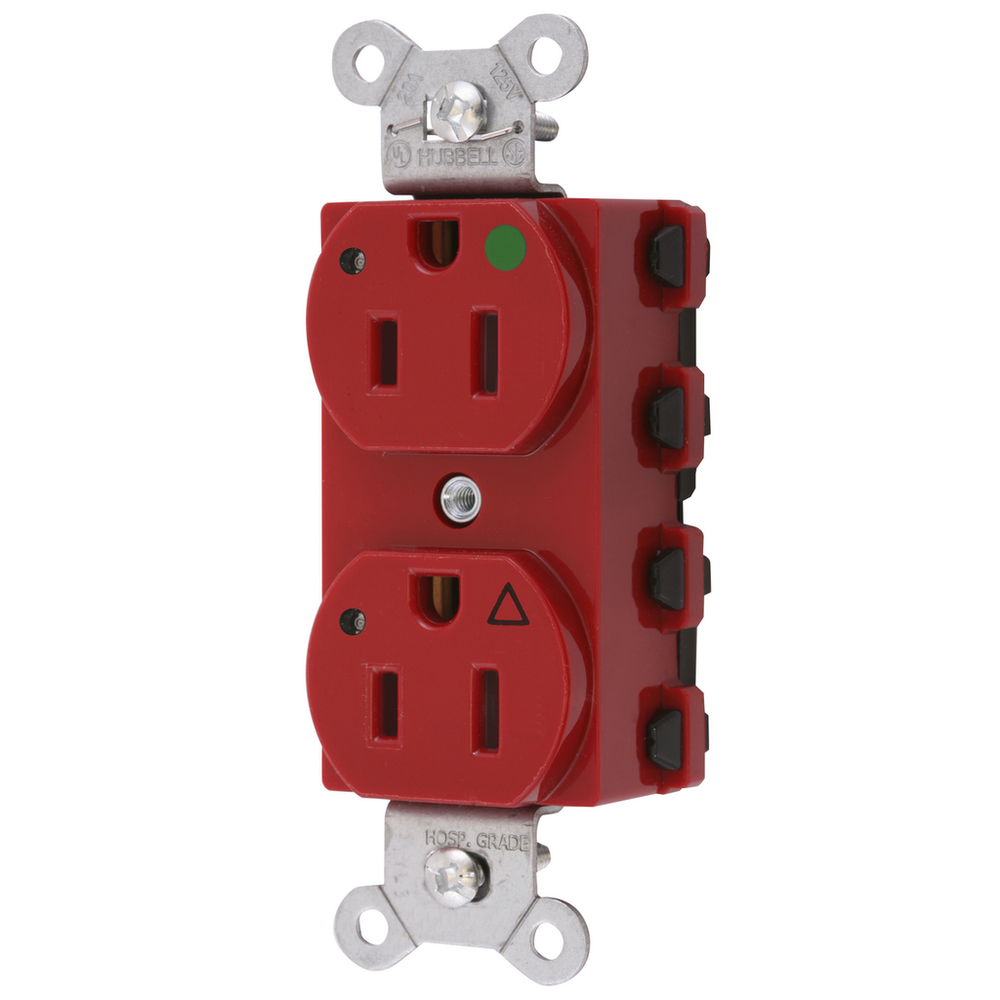

Straight Blade Devices, Receptacles, Duplex, SNAPConnect, Hospital Grade, Isolated Ground, LED Indicator, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Nylon, RedStraight Blade Devices, Receptacles, Duplex, SNAPConnect, Hospital Grade, Isolated Ground, LED Indicator, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Nylon, Red
Hubbell Wiring Device-Kellems SNAP8200RIGL is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Amperage Rating
- 15 A
- Application
- Hospital Grade
- Base Unit of Measure
- EA
- BOX SIZE
- 3.548x9.858x4.298 (in)
- Carton - Gross Weight per Pack
- 2.000 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585193700
- Carton - Total Units
- 10 EA
- Case Weight
- 20.000 lb.
- Class Code
- A04
- Color
- Red
- Connectivity
- Connectorized
- Country of Origin
- CN
- Current / Amperage Rating
- 15 A
- Current Rating
- 15 A
- Description - Invoice
- SNAP2CONNECT DPLX HG 15A/125V IG LED RD
- Dielectric Strength
- Withstands 2,000V minimum
- Dimensions
- 3.28 in x 1.64 in x 1.1 in
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 1.910 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536698000
- Height
- 1.1 in
- Horsepower - Maximum
- 0.5
- Image Actual Or Representative
- A
- Indicator(s) Type
- Green LED
- Industry Standard(s)
- CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Length
- 3.28 in
- Lowest Level UOM
- Each
- Material
- Nylon
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Nema Rating
- 5-15R
- NEMA Rating
- 5-15R
- Number Of Conductors
- 3-Wire Grounding
- Number of Poles
- 2-Pole
- Number Of Poles
- 2-Pole
- Number of Wires
- 3-Wire
- Number Of Wires
- 3-Wire
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical: Current Interrupting- Certified for current interrupting at full rated current;Electrical: Dielectric Voltage- Withstands 2,000V minimum;Mechanical: Product Identification Ratings are a permanent part of the device;Environmental: Flammability- UL 94V-2;Environmental: Operating Temperature- Maximum continuous 75°C;minimum -40°C (w/o impact)
- Phase
- Single Phase
- Series
- Hospital Grade
- Size
- 3.28 in x 1.64 in x 1.1 in
- Special Features
- Quick Connect- SNAPConnect, Isolated Ground, LED Indicator
- Standard
- CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Style
- Smooth Face
- Sub Class Code
- A04A040
- Type
- Power Indicating LED
- Voltage Rating
- 125 V
- Voltage Rating Description
- 125 V
- Wattage
- 1875 W
- Weight
- 0.2 lb.
- Width
- 1.910 in
- Wire Size
- #12 AWG
