Hubbell SNAP2152C2LA
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Straight Blade Devices, Receptacles, Style Line Decorator Duplex, SNAPConnect, Controlled, 15A 125V, 2-Pole 3-Wire Grounding, Nylon, Light AlmondStraight Blade Devices, Receptacles, Style Line Decorator Duplex, SNAPConnect, Controlled, 15A 125V, 2-Pole 3-Wire Grounding, Nylon, Light Almond

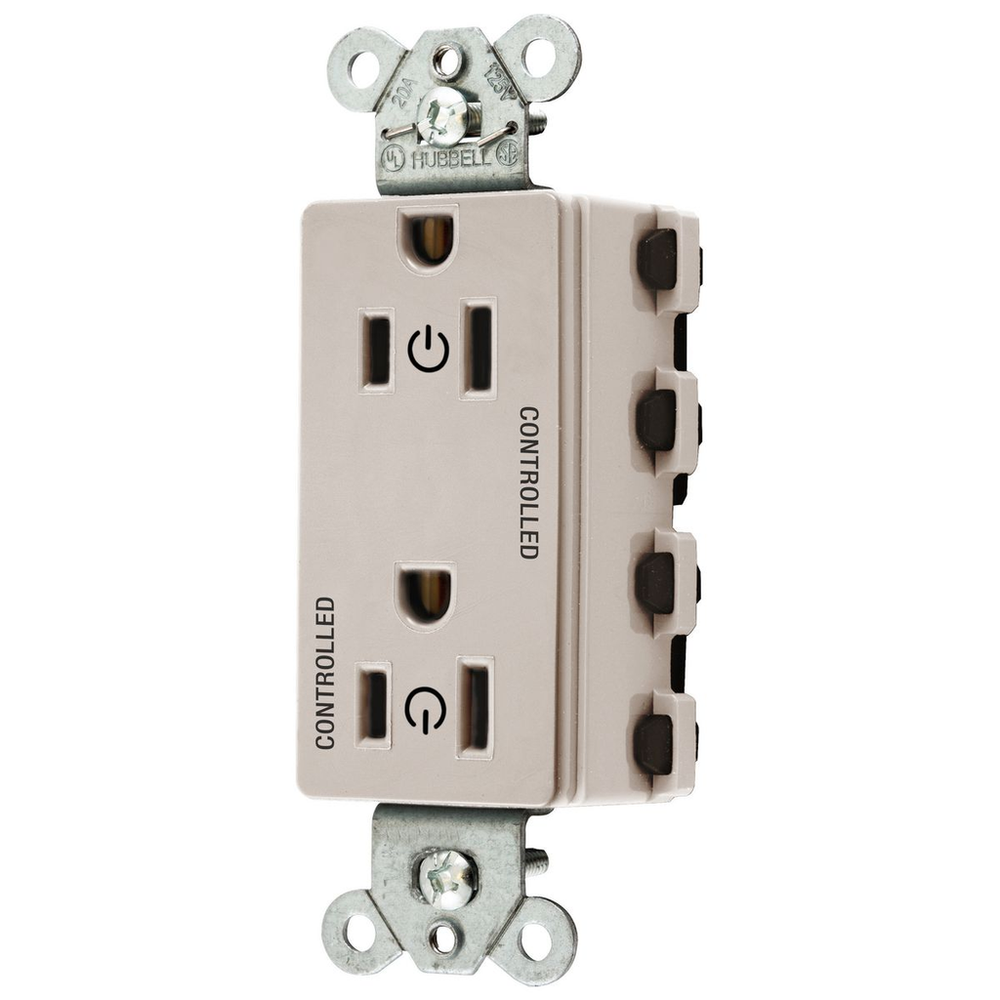

Hubbell Wiring Device-Kellems SNAP2152C2LA is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Amperage Rating
- 15 A
- Application
- SNAPConnect Permanently Marked
- Base Unit of Measure
- EA
- BOX SIZE
- 3.600x9.900x4.400 (in)
- Carton - Gross Weight per Pack
- 2.250 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585555232
- Carton - Total Units
- 10
- Case Weight
- 20.000 lb.
- Class Code
- A04
- Color
- Light Almond
- Connectivity
- Connectorized
- Country of Origin
- CN
- Current / Amperage Rating
- 15 A
- Current Rating
- 15 A
- Description - Invoice
- SNAPCONNECT DECO CONTROLLED 15A 125, LA
- Dielectric Strength
- Withstands 2,000V minimum
- Dimensions
- 3.28 in x 1.64 in x 1.1 in
- Display Size
- Standard Sized Product
- Each - Width
- 1.900 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536698000
- Height
- 1.1 in
- Horsepower - Maximum
- 0.5
- Image Actual Or Representative
- A
- Industry Standard(s)
- Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186, ASHRAE Energy Efficiency Standard 90.1 2010;California Title 24 2013
- Length
- 3.28 in
- Material
- Nylon
- MSDS Flag
- No
- Nema Rating
- 5-15R
- NEMA Rating
- 5-15R
- Number Of Conductors
- 3-Wire Grounding
- Number of Poles
- 2-Pole
- Number Of Poles
- 2-Pole
- Number of Wires
- 3-Wire
- Number Of Wires
- 3-Wire
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical: Current Interrupting- Certified for current interrupting at full rated current;Electrical: Dielectric Voltage- Withstands 2,000V minimum;Mechanical: Product Identification Ratings are a permanent part of the device;Environmental: Flammability- UL 94V-2;Environmental: Operating Temperature- Maximum continuous 75°C;minimum -40°C (w/o impact)
- Phase
- Single Phase
- Series
- Permanently Marked Receptacles
- Size
- 3.28 in x 1.64 in x 1.1 in
- Special Features
- Two Controlled Faces
- Standard
- Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186, ASHRAE Energy Efficiency Standard 90.1 2010;California Title 24 2013
- Style
- Style Line Decorator
- Sub Class Code
- A04A060
- Type
- Two Controlled Faces
- Voltage Rating
- 125 V
- Voltage Rating Description
- 125 V
- Wattage
- 1875 W
- Weight
- 0.2 lb.
- Width
- 1.900 in
- Wire Size
- #12 AWG
