Hubbell SHC1099ZP
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

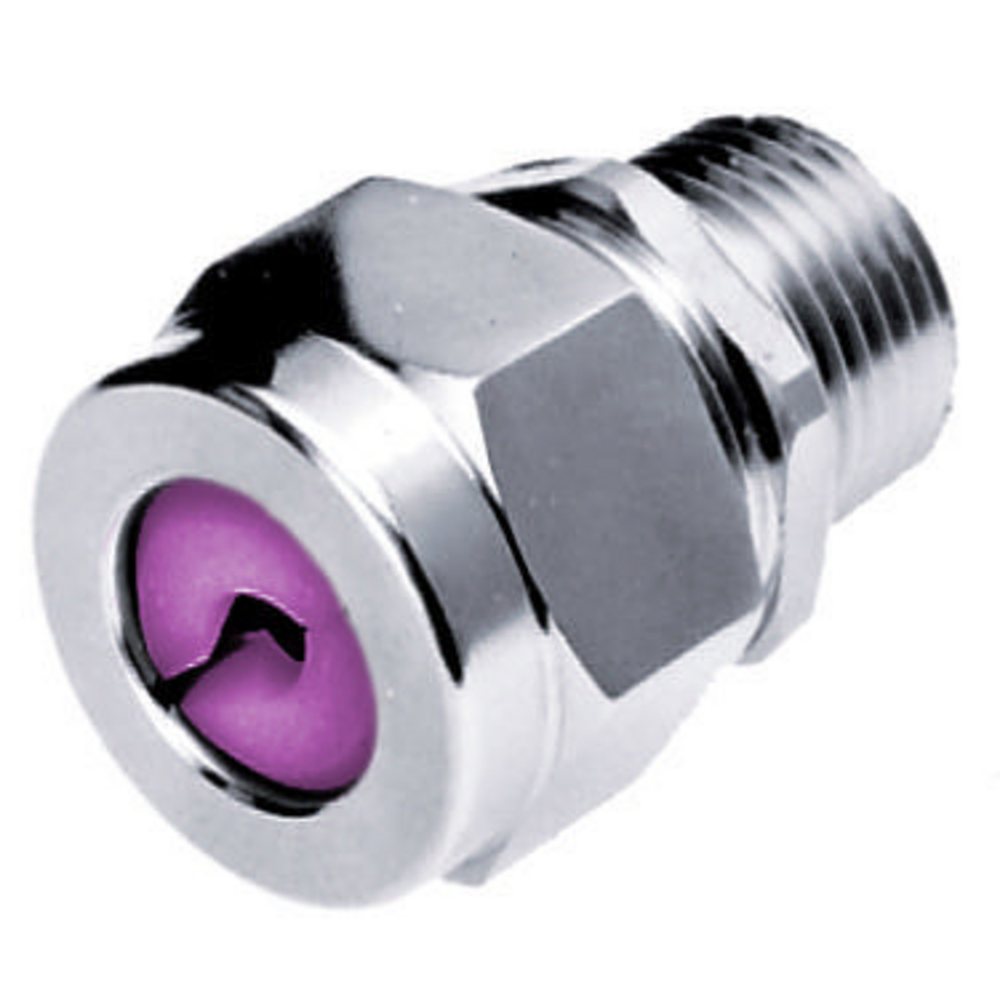

Hubbell Wiring Device-Kellems SHC1099ZP is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Application
- Straight Male- Form 3
- Base Unit of Measure
- EA
- BOX SIZE
- 4.300x6.300x5.400 (in)
- Carton - Gross Weight per Pack
- 5.7 lb.
- Carton - Number of Sub Packs
- 15
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585210995
- Carton - Total Units
- 15 EA
- Case - Total Units
- 120 EA
- Case Weight
- 42.000 lb.
- Class Code
- A52
- Color
- Metallic
- Color Code
- Orchid
- Conductor Range
- 0.75- 0.88 in (19.0- 22.2 mm)
- Cord Diameter
- 0.75-0.88 in
- Country of Origin
- US
- Description - Invoice
- CORDCON, STR ML, .75-.88"; 1"; STL
- Display Size
- 1" NPT
- Each - Pack Description
- Each
- Each - Width
- 1.300 in
- Environmental Conditions
- Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
- Freight Class Code
- 06168002
- Harmonization Code
- 7326908688
- Hub Size
- 1"
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL Listed
- Lowest Level UOM
- Each
- Material
- Machined Zinc- Plated Steel
- Material - Mounting Hardware
- Locknut or Tapped Opening
- MSDS Flag
- No
- Nema Rating
- NEMA Type 4, 4X, 12 and 13
- NEMA Rating
- NEMA Type 4, 4X, 12 and 13
- Number of Conductors
- Single
- Number Of Conductors
- Single
- Performance
- Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
- Replaced Catalog Number
- SHC1042ZP
- Series
- Standard Duty
- Special Features
- Standard Product
- Standard
- UL Listed
- Sub Class Code
- A52A490
- Temperature Rating
- Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
- Type
- Straight Male
- Width
- 1.300 in
Williams Automation sells Hubbell parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
