Hubbell PT7XC
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

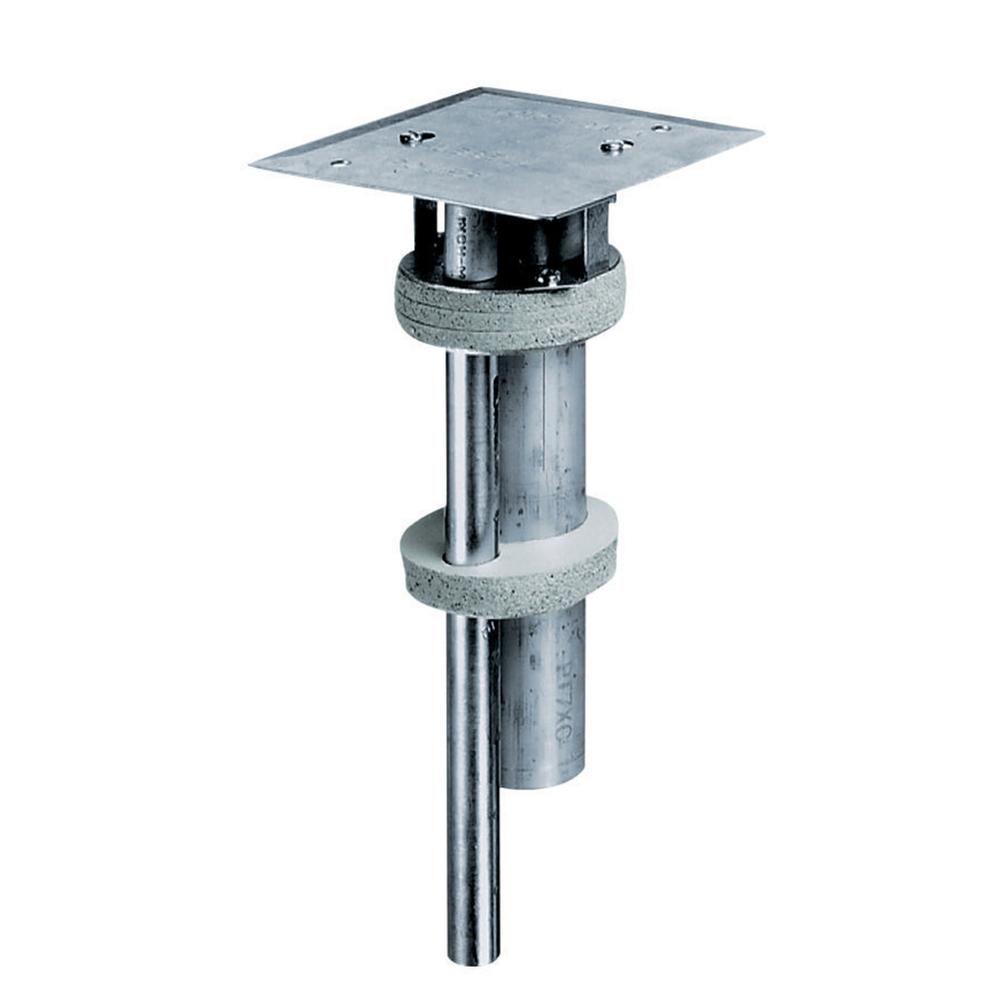

Hubbell Wiring Device-Kellems PT7XC is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Application
- Through Floor Fitting
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585204475
- Class Code
- A36
- Core Hole
- 3 Inch
- Country of Origin
- US
- Description - Invoice
- FRPT FITTING, 3" THRU-FLOOR , ONLY
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 6.700 in
- Freight Class Code
- 06168002
- Harmonization Code
- 7326908688
- Image Actual Or Representative
- A
- Industry Standard(s)
- Fire Resistance - R8429;Outlet Box- E31999
- Lowest Level UOM
- Each
- Material
- Composite
- MSDS Flag
- No
- Performance
- Electrical - Power Wiring Capacity - Up to ten #12 AWG type THHN wires, or Up to six #12 AWG and two #10 AWG type THHN wires;Electrical - Voice/Data Wiring Capacity - Up to four 25 pair tel./data cables (200 #22 AWG tel./data conductors),or Up to five IBM Type 2 data cables;Mechanical - Max. Cu Cross Section - 1/2" Power EMT .0461 sq. in., 1 1/2" Low Voltage EMT .1000 sq. in.;Mechanical - UL Spacing Restrictions - Min. of 2 ft. O.C. and not more than one unit per each 65 sq. ft. of floor area in each span
- Replaced Catalog Number
- PT7
- Special Features
- Standard Product
- Standard
- Fire Resistance - R8429;Outlet Box- E31999
- Style
- Through-Floor Fittings
- Sub Class Code
- A36A350
- Width
- 6.700 in
