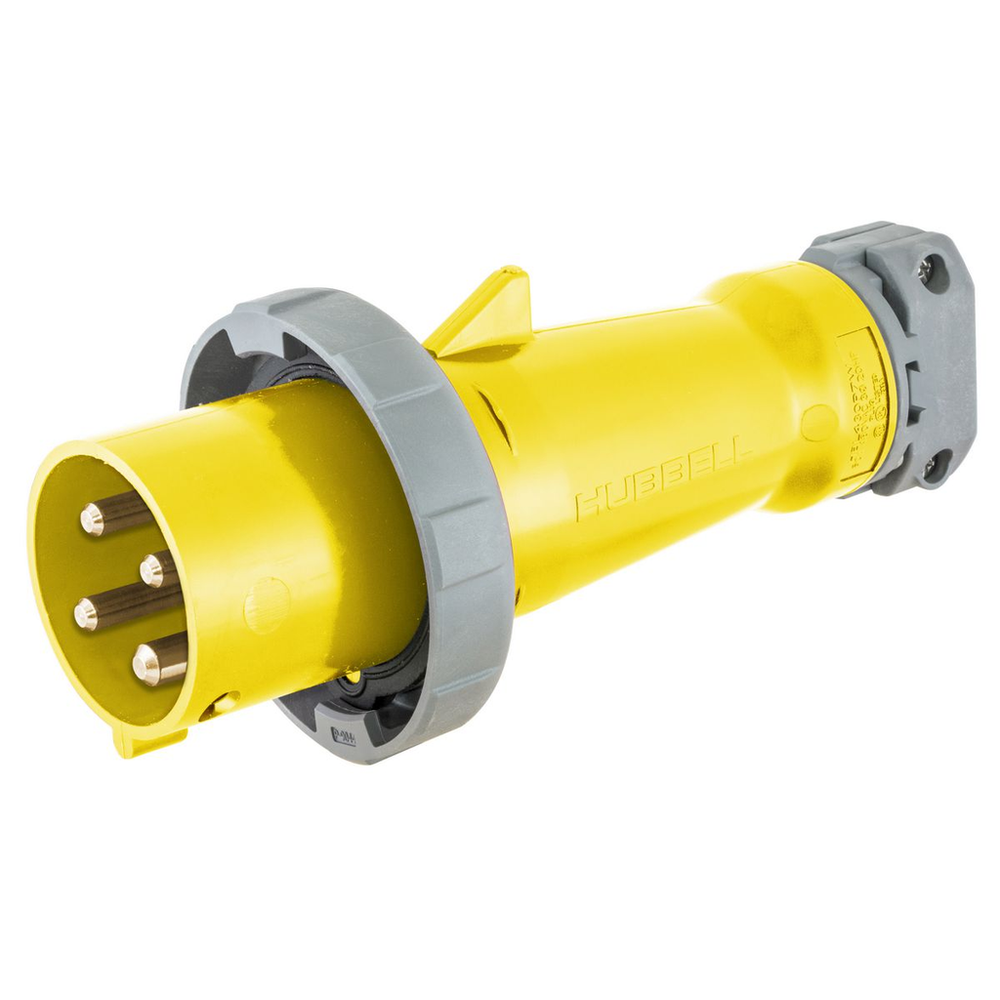

Hubbell M4100P12
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Male, Plug, 100A 125/250V, 3-Pole 4-Wire Grounding, Terminal Screws, YellowHeavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Male, Plug, 100A 125/250V, 3-Pole 4-Wire Grounding, Terminal Screws, Yellow
Hubbell Wiring Device-Kellems M4100P12 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Amperage Rating
- 100 A
- Application
- Marine Wiring Devices
- Base Unit of Measure
- EA
- BOX SIZE
- 5.495x12.745x5.495 (in)
- Carton - Gross Weight per Pack
- 25.250 lb.
- Carton - Number of Sub Packs
- 6
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585410043
- Carton - Total Units
- 6 EA
- Class Code
- A12
- Color
- Yellow
- Connectivity
- Pressure Terminal Screws
- Cord Type
- All Portable
- Country of Origin
- PR
- Current / Amperage Rating
- 100 A
- Current Rating
- 100 A
- Description - Invoice
- MARINE PS PLUG, 3P4W, 100A 125/250V
- Display Size
- Standard Sized
- Each - Pack Description
- Each
- Each - Width
- 6.250 in
- Environmental Conditions
- Watertight
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Image Actual Or Representative
- A
- Industry Standard(s)
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
- Lowest Level UOM
- Each
- Material
- Composite
- Material - Mounting Hardware
- Cord Mounted
- MSDS Flag
- No
- Nema Rating
- Non-NEMA
- NEMA Rating
- Non-NEMA
- Number of Poles
- 3-Pole
- Number Of Poles
- 3-Pole
- Number of Wires
- 4-Wire
- Number Of Wires
- 4-Wire
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
- Phase
- Single Phase
- Series
- Corrosion Resistant
- Special Features
- Watertight
- Standard
- CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
- Style
- Standard Service
- Sub Class Code
- A12A180
- Type
- Watertight Plug
- Voltage Rating
- 125/250 VAC
- Voltage Rating Description
- 125/250 VAC
- Wattage
- 25000
- Width
- 6.250 in
- Wire Size
- #3 AWG to #1/0 AWG
