Description

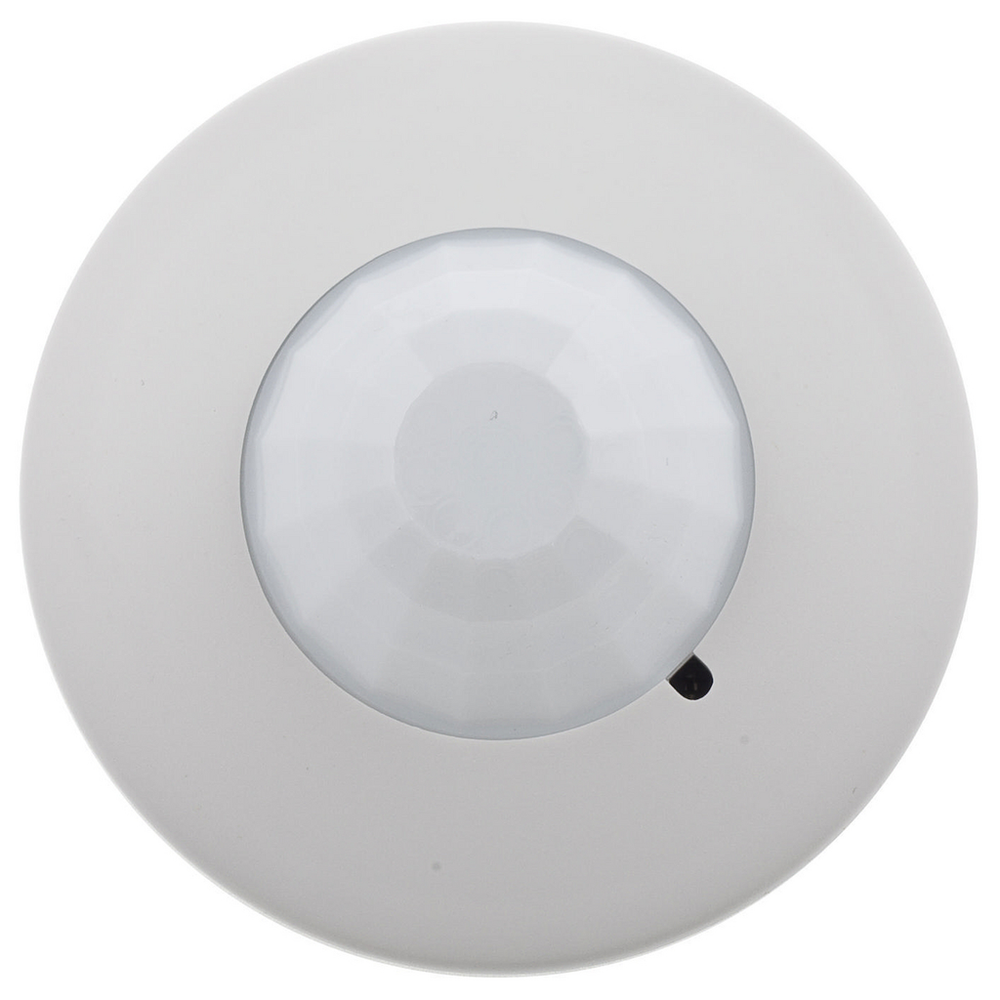

Switches and Lighting Controls, Occupancy Sensor, Passive Infrared, 120-347 VAC, Ceiling Mounted, 1500 Square FeetSwitches and Lighting Controls, Occupancy Sensor, Passive Infrared, 120-347 VAC, Ceiling Mounted, 1500 Square Feet
Hubbell Wiring Device-Kellems LVPR1500R is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Application
- Compatible with most LED and CFL
- Base Unit of Measure
- EA
- BOX SIZE
- 6.000x10.000x6.000 (in)
- Carton - Gross Weight per Pack
- 6.500 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585181271
- Carton - Total Units
- 10 EA
- Class Code
- A48
- Color
- White
- Control Output
- Input Voltage
- Country of Origin
- CN
- Coverage
- 1500 ft²
- Description - Invoice
- L VOLT PIR CEIL SEN 1500SFT 120-347V
- Diameter
- 4.5 in
- Each - Pack Description
- Each
- Each - Width
- 4.800 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Frequency Rating
- 50/60 Hz
- Harmonization Code
- 8536507000
- Height
- 3.4 in
- Humidity
- 0% to 95% non-condensing relative humidity
- Image Actual Or Representative
- A
- Indicator(s) Type
- PIR= Red LED
- Industry Standard(s)
- cULus Listed To UL244A
- Load
- Incandescent- 800 Watts120V Ballast- 1000 Watts277V Ballast- 1800 Watts347V Ballast- 2200 Watts
- Load Capacity
- Incandescent- 800 Watts120V Ballast- 1000 Watts277V Ballast- 1800 Watts347V Ballast- 2200 Watts
- Lowest Level UOM
- Each
- Material
- ABS (Acrylonitrile butance styrene - Thermoplastic polymer)
- Material - Mounting Hardware
- Screw Mounting
- Mounting
- Ceiling Mount
- Mounting Height
- 8-12 ft
- Mounting Type
- Ceiling Mount
- MSDS Flag
- No
- Operating Cycles
- 6,000 Cycles Minimum
- Operating Temperature
- 32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
- Performance
- Controls - Ambient Light - 1 to 1000 foot candles;Controls - Sensitivity - Manual, 0 to 100%;Controls - Time Delay - Manual 30 seconds to 30 minutes;Electrical - Load Rating - 800W Incandescent and 1000W Fluorescent @120V AC, 1800W Fluorescent @277V AC, 2200W Fluorescent @ 347V AC;Electrical - Power Supply - 120-347V AC, 50/60Hz Single Phase;Environmental - Operating Temperature - 32°F to 104°F (0°C to 40°C) with rate of change not exceeding 20°F (11°C) per hour;Environmental - Storage Temperature - -20°F to 150°F (-29°C to 65°C), 0% to 95% non-condensing relative humidity;Sensing Indicators - Passive Infrared - Red LED
- Photocell
- Yes
- Sensitivity
- Adaptive 0 to 100%
- Series
- Passive Infrared
- Special Features
- Standard Product
- Standard
- cULus Listed To UL244A
- Storage Temperature Range
- -20°F to 150°F (-29°C to 65°C)
- Style
- Line Voltage
- Sub Class Code
- A48A450
- Supply Voltage
- 120-347V AC, 50/60Hz
- Target Size
- People in
- Type
- Sensors
- Voltage Rating
- 120-347 VAC
- Voltage Rating Description
- 120/347V AC
- Width
- 4.800 in
