Hubbell LR320
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

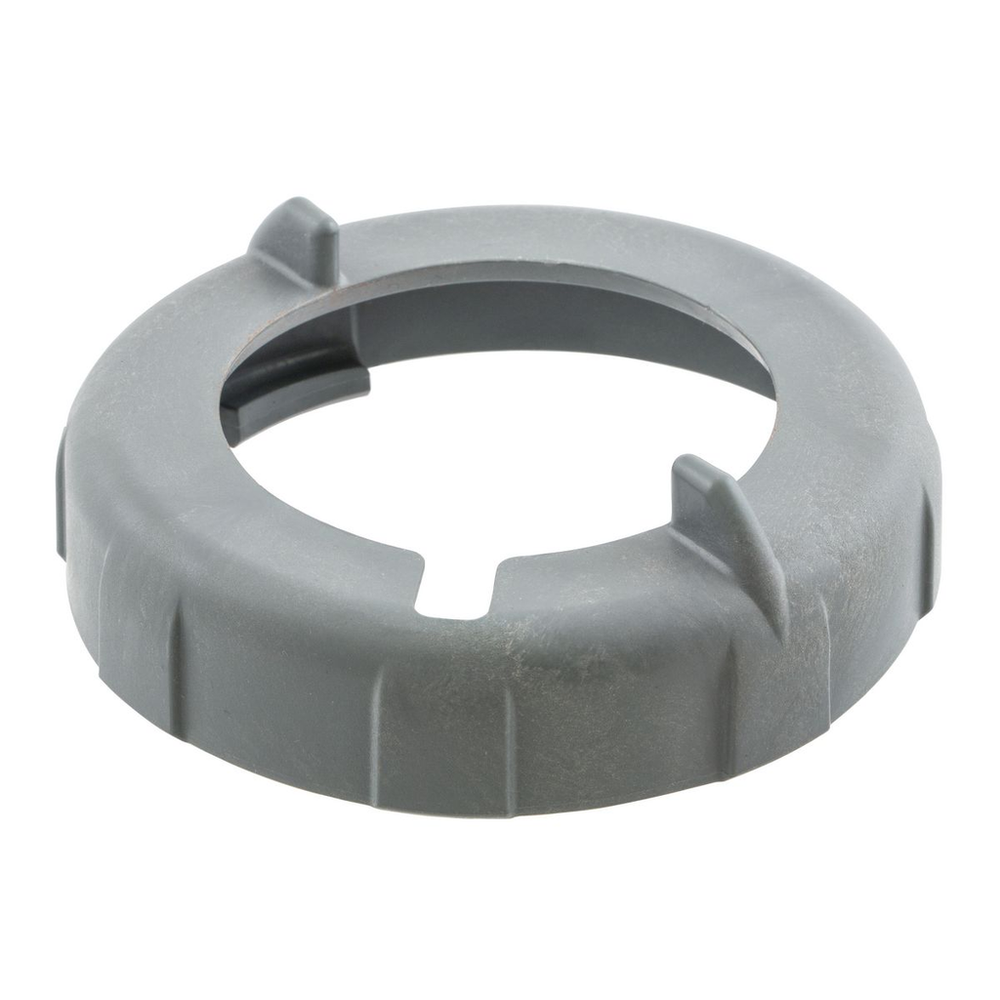

Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Replacement Parts, Locking Ring Kit, For 20A 3-Wire, Gray, Non-MetallicHeavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Replacement Parts, Locking Ring Kit, For 20A 3-Wire, Gray, Non-Metallic
Hubbell Wiring Device-Kellems LR320 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Application
- 3-Wire 16 and 20 Amp
- Base Unit of Measure
- EA
- BOX SIZE
- 5.800x12.700x5.400 (in)
- Carton - Gross Weight per Pack
- 1.1 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585370514
- Carton - Total Units
- 10 EA
- Class Code
- A12
- Connectivity
- Pressure Terminal Screws
- Cord Type
- All Portable
- Country of Origin
- US
- Description - Invoice
- PS, IEC, REPL, LOCK-RING, 3W, 20A
- Display Size
- Standard Sized
- Each - Pack Description
- Each
- Each - Width
- 5.500 in
- Environmental Conditions
- Watertight
- Freight Class Code
- 06168002
- Harmonization Code
- 3926909985
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL Listed
- Lowest Level UOM
- Each
- Material
- Composite
- Material - Mounting Hardware
- Cord Mounted
- MSDS Flag
- No
- Nema Rating
- Non-NEMA
- NEMA Rating
- Non-NEMA
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Operating Temperatures - Maximum Continuous: 75° C;Minimum Continuous: -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
- Series
- Accessories
- Special Features
- Watertight
- Standard
- UL Listed
- Sub Class Code
- A12A180
- Type
- Locking Ring
- Width
- 5.500 in
