Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, BlueHeavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Blue

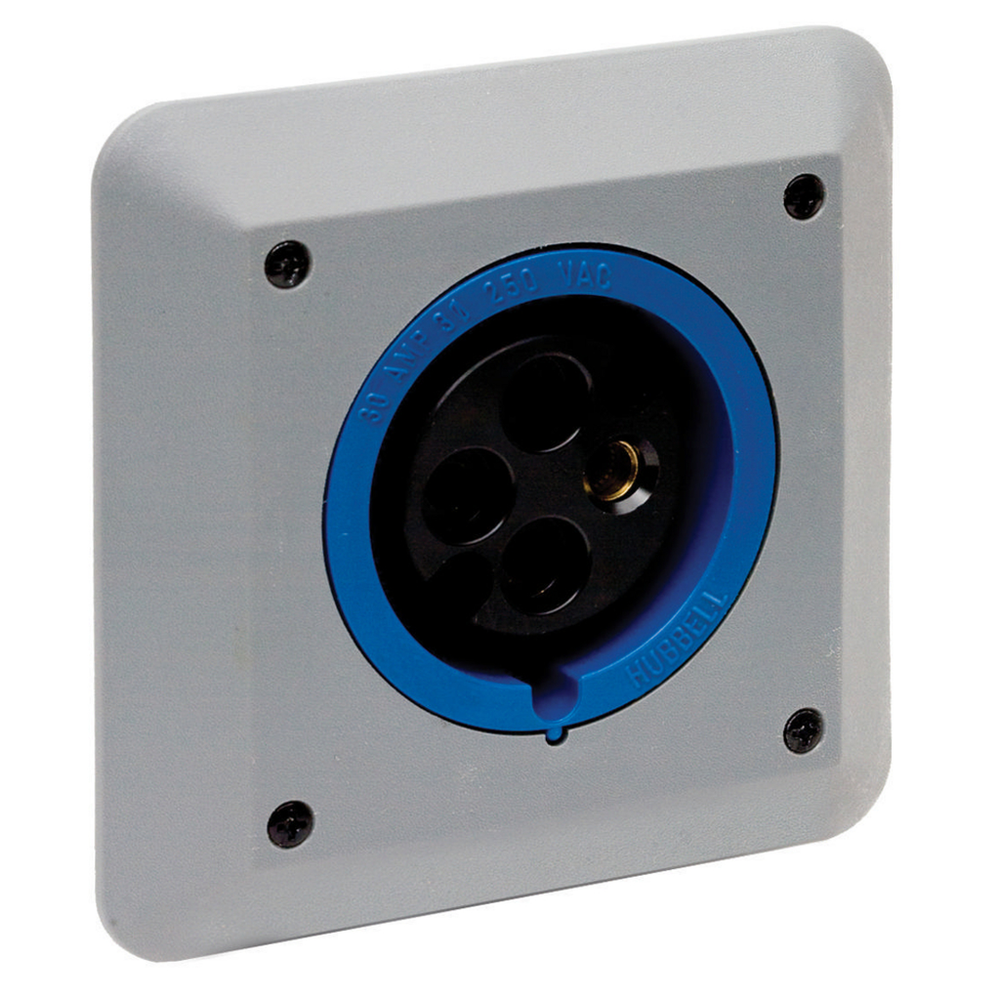

Hubbell Wiring Device-Kellems L430R9 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Amperage Rating
- 30 A
- Application
- High Ampacity Watertight Connections
- Base Unit of Measure
- EA
- BOX SIZE
- 6.495x12.745x9.375 (in)
- Carton - Gross Weight per Pack
- 5.85 lb.
- Carton - Number of Sub Packs
- 5
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585888101
- Carton - Total Units
- 5 EA
- Class Code
- A12
- Color
- Blue
- Connectivity
- Pressure Terminal Screws
- Country of Origin
- PR
- Current / Amperage Rating
- 30 A
- Current Rating
- 30 A
- Description - Invoice
- PS, IEC, REPL, 3P4W, 30A 3P 250V, LO-PRO
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 4.620 in
- Environmental Conditions
- Watertight
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Image Actual Or Representative
- A
- Lowest Level UOM
- Each
- Material
- Thermoplastic
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Nema Rating
- Non-NEMA
- NEMA Rating
- Non-NEMA
- Number of Poles
- 3-Pole
- Number Of Poles
- 3-Pole
- Number of Wires
- 4-Wire
- Number Of Wires
- 4-Wire
- Performance
- Electrical - Current Interrupting - Certified for current interruption at full rated current;Electrical - DielectricVoltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 250V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP22 Suitability;Environmental - Operating Temperatures - Max. Continuous +75°C;Min. -40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American convention
- Phase
- Three Phase
- Series
- Low Profile
- Special Features
- Standard
- Style
- Standard Service
- Sub Class Code
- A12A180
- Type
- Receptacle
- Voltage Rating
- 3 Phase 250 VAC
- Voltage Rating Description
- 3 Phase 250 VAC
- Wattage
- 7500
- Width
- 4.620 in
- Wire Size
- #12 AWG to #8 AWG
