Hubbell IG4700A
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

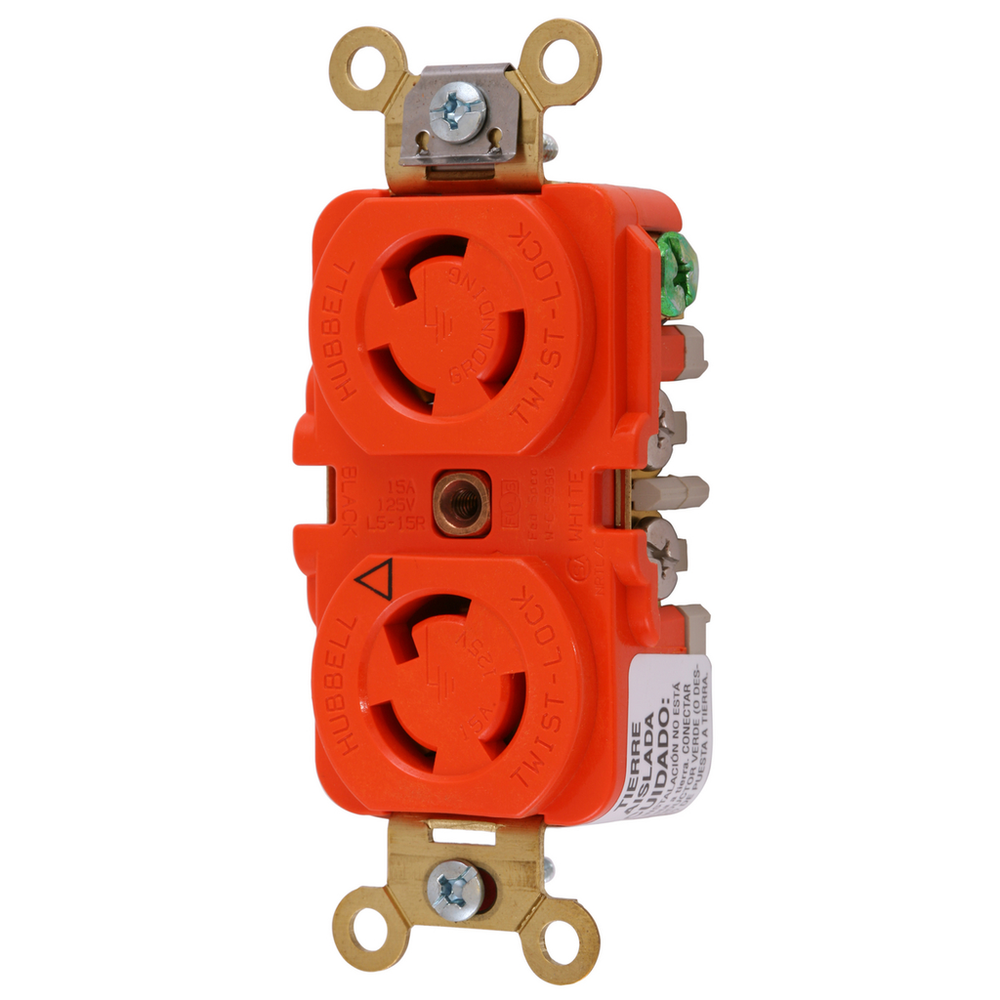

Locking Devices, Twist-Lock®, Isolated Ground Industrial, Duplex Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15R, Screw Terminal, Orange.Locking Devices, Twist-Lock®, Isolated Ground Industrial, Duplex Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, L5-15R, Screw Terminal, Orange
Hubbell Wiring Device-Kellems IG4700A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Amperage Rating
- 15 A
- Application
- Heavy Duty Industrial
- Base Unit of Measure
- EA
- BOX SIZE
- 3.238x9.178x4.298 (in)
- Carton - Gross Weight per Pack
- 3.500 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585002392
- Carton - Total Units
- 10 EA
- Case - Total Units
- 50 EA
- Case Weight
- 17.500 lb.
- Class Code
- A08
- Connectivity
- Back and Side Wired
- Country of Origin
- US
- Current / Amperage Rating
- 15 A
- Current Rating
- 15 A
- Description - Invoice
- LKG DUP RCPT, IG, 15A 125V, L5-15R, OR
- Dielectric Strength
- Withstands 2,000V minimum
- Dimensions
- 3.29 in x 1.70 in x 1.17 in
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 1.790 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536698000
- Height
- 1.17 in
- Horsepower - Maximum
- 0.5
- Image Actual Or Representative
- A
- Industry Standard(s)
- Listed to UL 498
- Length
- 3.29 in
- Lowest Level UOM
- Each
- Material
- Thermoplastic
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Nema Rating
- L6-15R
- NEMA Rating
- L6-15R
- Number of Poles
- 2-Pole
- Number Of Poles
- 2-Pole
- Number of Wires
- 3-Wire
- Number Of Wires
- 3-Wire
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Phase
- Single Phase
- Replaced Catalog Number
- IG4700;IG4700ACN;IG4700CN
- Size
- 3.29 in x 1.70 in x 1.17 in
- Special Features
- Isolated Ground
- Standard
- Listed to UL 498
- Sub Class Code
- A08A110
- Voltage Rating
- 125 V
- Voltage Rating Description
- 125 V
- Weight
- 0.35 lb.
- Width
- 1.790 in
- Wire Size
- #18 AWG to #10 AWG
