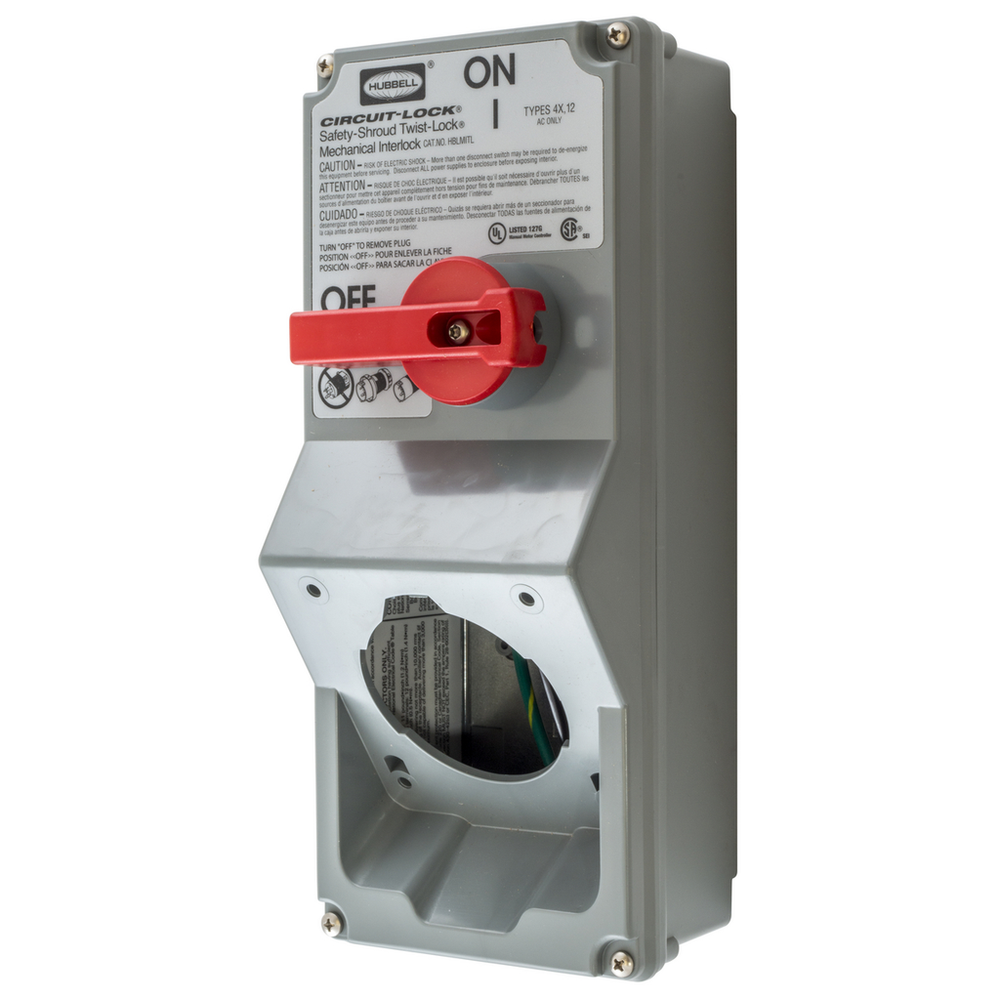

Hubbell HBLMITL
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Heavy Duty Products, Switched Twist-Lock®, Industrial Grade, Accessories, Mechanical Interlock, 30A 600V AC, Single Conductor, Terminal Screws, GrayHeavy Duty Products, Switched Twist-Lock®, Industrial Grade, Accessories, Mechanical Interlock, 30A 600V AC, Single Conductor, Terminal Screws, Gray
Hubbell Wiring Device-Kellems HBLMITL is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585176802
- Class Code
- A12
- Color
- Gray
- Country of Origin
- PL
- Description - Invoice
- MECH INTRLCK SWITCHED LKG ENC
- Dielectric Strength
- Withstands 3,000V minimum
- Dimensions
- 11.44 in x 4.88 in x 4.19 in
- Each - Pack Description
- Each
- Each - Width
- 5.700 in
- Freight Class Code
- 06168002
- Harmonization Code
- 8536509025
- Height
- 4.19 in
- Image Actual Or Representative
- A
- Industry Standard(s)
- CSA Certified TYPE 4, 4X and TYPE 12K Enclosure Rating;Listed to UL Standard
- Length
- 11.44 in
- Lowest Level UOM
- Each
- MSDS Flag
- No
- Nema Rating
- Type 4X
- NEMA Rating
- Type 4X
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage;Electrical - Dielectric Voltage - Withstands 3,000V minimum;Electrical - Max. Working Voltage - 600V RMS;Electrical - Operations - Mechanical 10,000 cycles;Electrical 6,000 cycles;Environmental - Flammability - Meets UL 94V0 material classification;Environmental - Moisture Resistance - IP66 suitability;Environmental - Operating Temperature - Maximum continuous +75°C Minimum continuous -40°C;Environmental - UV Resistance - All exposed materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External full adjustable feet;Mechanical - Product Identification - Identification and ratings are part of the external label and receptacle face;Mechanical - Terminal Identification - In accordance with UL, CSA
- Size
- 11.44 in x 4.88 in x 4.19 in
- Standard
- CSA Certified TYPE 4, 4X and TYPE 12K Enclosure Rating;Listed to UL Standard
- Style
- For 20A and 30A Devices
- Sub Class Code
- A12A210
- Type
- Switched Enclosure
- Weight
- 3.65 lb.
- Width
- 5.700 in
