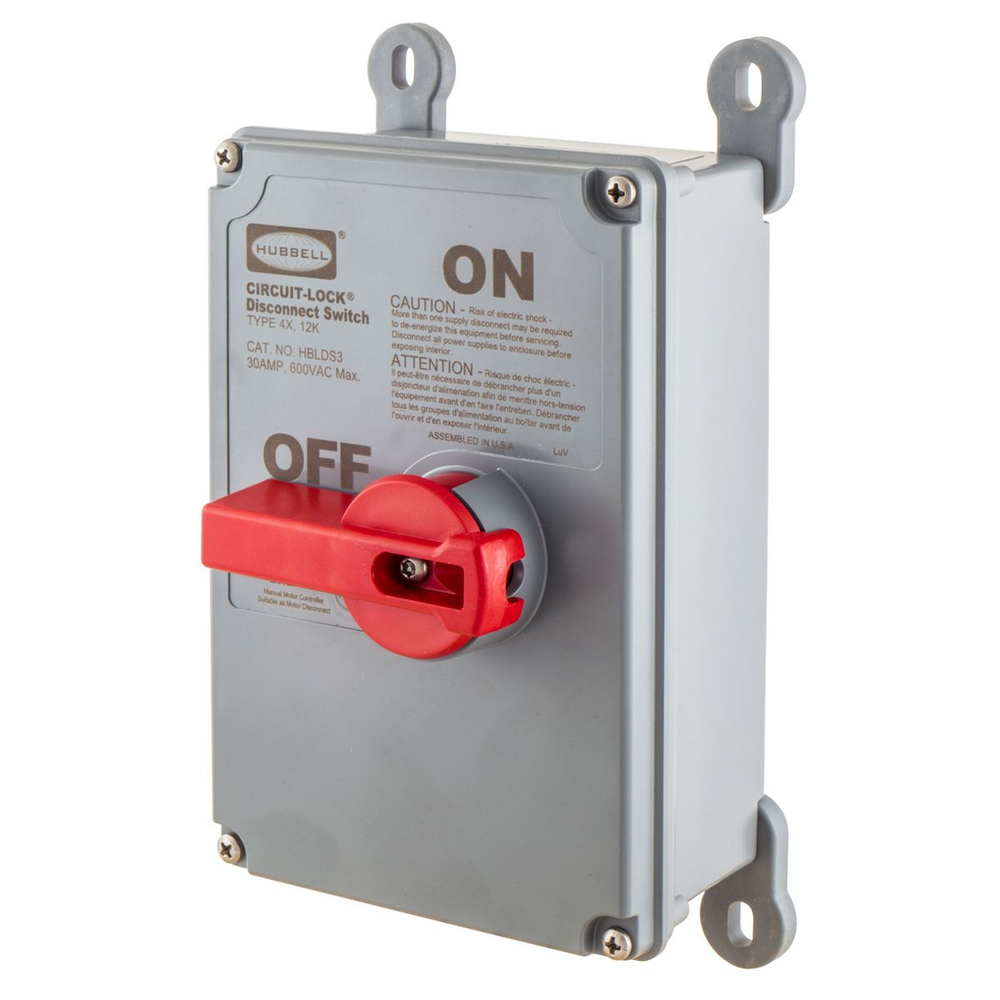

Hubbell HBLDS3
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Switches and Lighting Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Three Pole, 30A 600V AC, Screw Terminals, Gray, NEMA4XEnclosure,Switches and Lighting Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Three Pole, 30A 600V AC, Screw Terminals, Gray, NEMA4XEnclosure,
Hubbell Wiring Device-Kellems HBLDS3 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Amperage Rating
- 30 A
- Application
- Labelless
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585955001
- Class Code
- A16
- Country of Origin
- PL
- Current / Amperage Rating
- 30 A
- Current Rating
- 30 A
- Description - Invoice
- DISCONNECT, 30A UNFUSED, 4X
- Dielectric Strength
- Withstands 3000V AC minimum
- Dimensions
- 8.5 in x 6 in x 4.12 in
- Each - Pack Description
- Each
- Each - Width
- 5.500 in
- Freight Class Code
- 06168002
- Harmonization Code
- 8536509065
- Height
- 4.12 in
- Horsepower - Maximum
- 15
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL Listed
- Ingress Protection
- IP69K
- Length
- 8.5 in
- Lowest Level UOM
- Each
- Mounting Method
- External fully adjustable feet
- MSDS Flag
- No
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage;Electrical - Dielectric Voltage - Withstands 3000V AC minimum;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V0 Classification;Environmental - Operating Temperature - Max Continuous 75°C,Min Continuous -40°C w/o impact;Environmental - UV Resistance - All materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - Non-Metallic - External fully adjustable feet;Mechanical - Product Identification - Identification and ratings are part of external label;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
- Phase
- Three Phase
- Series
- Non-Fused;MotorQuick/LINKOSITY
- Shape
- Square Top
- Size
- 8.5 in x 6 in x 4.12 in
- Standard
- UL Listed
- Style
- Heavy Duty;Replacement Switches
- Sub Class Code
- A16A260
- Type
- Disconnect Switches;Accessories For LINKOSITY®
- Weight
- 2.6 lb.
- Width
- 5.500 in
