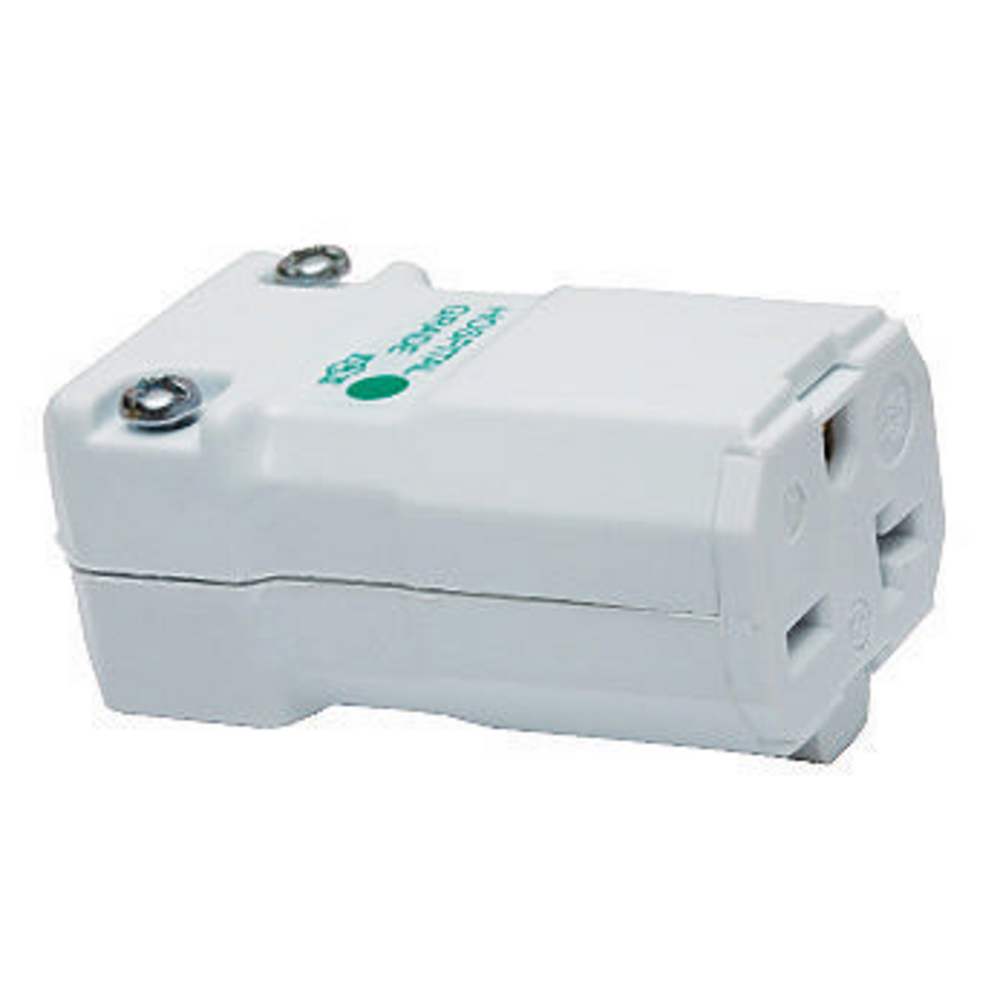

Hubbell HBL8469V
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Straight Blade Devices, Female Connector Body, Valise Series, Hospital Grade, Straight, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, White, Single Pack.Straight Blade Devices, Female Connector Body, Valise Series, Hospital Grade, Straight, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, White, Single Pack
Hubbell Wiring Device-Kellems HBL8469V is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Amperage Rating
- 20 A
- Application
- Hospital Grade
- Base Unit of Measure
- EA
- BOX SIZE
- 3.048x8.298x3.308 (in)
- Carton - Gross Weight per Pack
- 1.550 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585019406
- Carton - Total Units
- 10 EA
- Case - Total Units
- 50 EA
- Case Weight
- 7.500 lb.
- Class Code
- A04
- Color
- White
- Conductor Range
- #18AWG to #12AWG
- Connectivity
- Screw Terminals
- Cord Range
- 0.300"-0.660" (7.6-16.8)
- Country of Origin
- PR
- Current / Amperage Rating
- 20 A
- Current Rating
- 20 A
- Description - Invoice
- VALISE CONN, HG, 20A 250V, 6-20R, WH
- Dielectric Strength
- Withstands 2,000V minimum
- Dimensions
- 2.63 in x 1.25 in x 1.13 in
- Display Size
- Standard
- Each - Pack Description
- Each
- Each - Width
- 1.600 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536698000
- Height
- 1.13 in
- Horsepower - Maximum
- 2
- Image Actual Or Representative
- A
- Industry Standard(s)
- CSA Certified to C22.2 No 42 File 280C;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E1706
- Insulation
- Insulated Body
- Length
- 2.63 in
- Lowest Level UOM
- Each
- Material
- Nylon
- Material - Mounting Hardware
- Cord Mounted
- MSDS Flag
- No
- Nema Rating
- 6-20R
- NEMA Rating
- 6-20R
- Number of Poles
- 2-Pole
- Number Of Poles
- 2-Pole
- Number Of Wires
- 3-Wire
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2000V AC minimum;Environmental - Flammability - UL 94 HB;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #18-#12 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Replaced Catalog Number
- HBL8579E
- Series
- Hospital Grade
- Size
- 2.63 in x 1.25 in x 1.13 in
- Special Features
- Standard Product
- Standard
- CSA Certified to C22.2 No 42 File 280C;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E1706
- Style
- Valise
- Sub Class Code
- A04A030
- Temperature Rating
- Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
- Type
- Connector Body
- Voltage Rating
- 250 V
- Voltage Rating Description
- 250 V
- Weight
- 0.15 lb.
- Width
- 1.600 in
- Wire Size
- #18 AWG to #12 AWG
