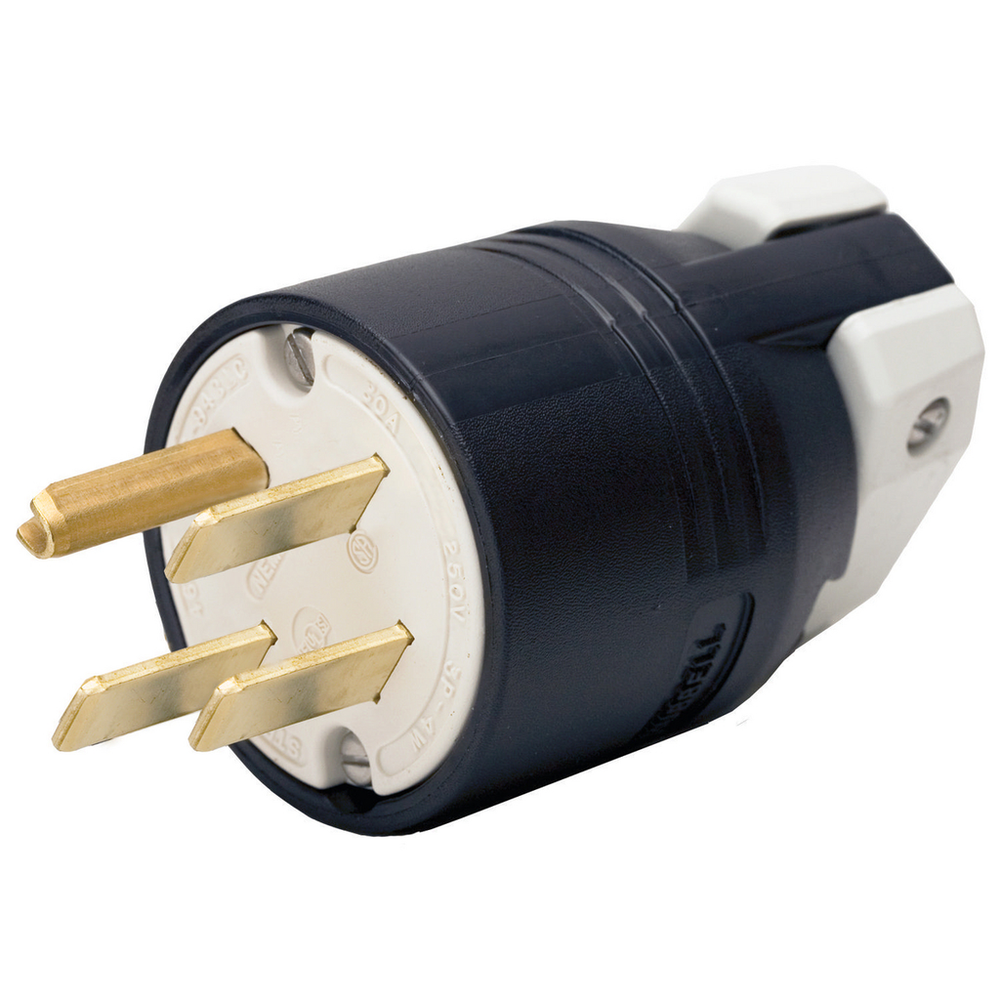

Hubbell HBL8431C
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Straight Blade Devices, Plug Industrial Grade, 3-Pole 4-Wire Grounding, 30A 3 Phase 250V AC, 15-30P, Single Pack.Straight Blade Devices, Plug Industrial Grade, 3-Pole 4-Wire Grounding, 30A 3 Phase 250V AC, 15-30P, Single Pack.
Hubbell Wiring Device-Kellems HBL8431C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Amperage Rating
- 30 A
- Base Unit of Measure
- EA
- BOX SIZE
- 4.995x11.995x9.125 (in)
- Carton - Gross Weight per Pack
- 4.700 lb.
- Carton - Number of Sub Packs
- 5
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585015408
- Carton - Total Units
- 5 EA
- Class Code
- A04
- Country of Origin
- PR
- Current / Amperage Rating
- 30 A
- Current Rating
- 30 A
- Description - Invoice
- PLUG, 3P4W, 30A 3PH 250V,15-30P, BK
- Dielectric Strength
- Withstands 2,000V minimum
- Each - Width
- 3.168 in
- Freight Class Code
- 06168002
- Harmonization Code
- 8536694020
- Image Actual Or Representative
- A
- Industry Standard(s)
- UL Listed File E1706;Certified to CSA
- MSDS Flag
- No
- Nema Rating
- 15-30P
- NEMA Rating
- 15-30P
- Number of Poles
- 3-Pole
- Number Of Poles
- 3-Pole
- Number of Wires
- 4-Wire
- Number Of Wires
- 4-Wire
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical: Current Interrupting: Certified for current interrupting at full rated current;Dielectric Voltage : Withstands 2,000V minimum;Mechanical: Terminal Accommodation: #12 AWG through #4 AWG copper wire only;Terminal Identification :Terminals identified in accordance with UL 498 and CSA;Environmental: Flammability: UL 94 HB;IP Suitability: IP20;Operating Temperatures: Maximum continuous 75°C;minimum -40°C (w/o impact)
- Replaced Catalog Number
- 8431C
- Standard
- UL Listed File E1706;Certified to CSA
- Sub Class Code
- A04A080
- Type
- Plug
- Voltage Rating
- 250 VAC
- Voltage Rating Description
- 250 V
- Weight
- 0.8 lb.
- Width
- 3.168 in
- Wire Size
- #12 AWG to #4 AWG
