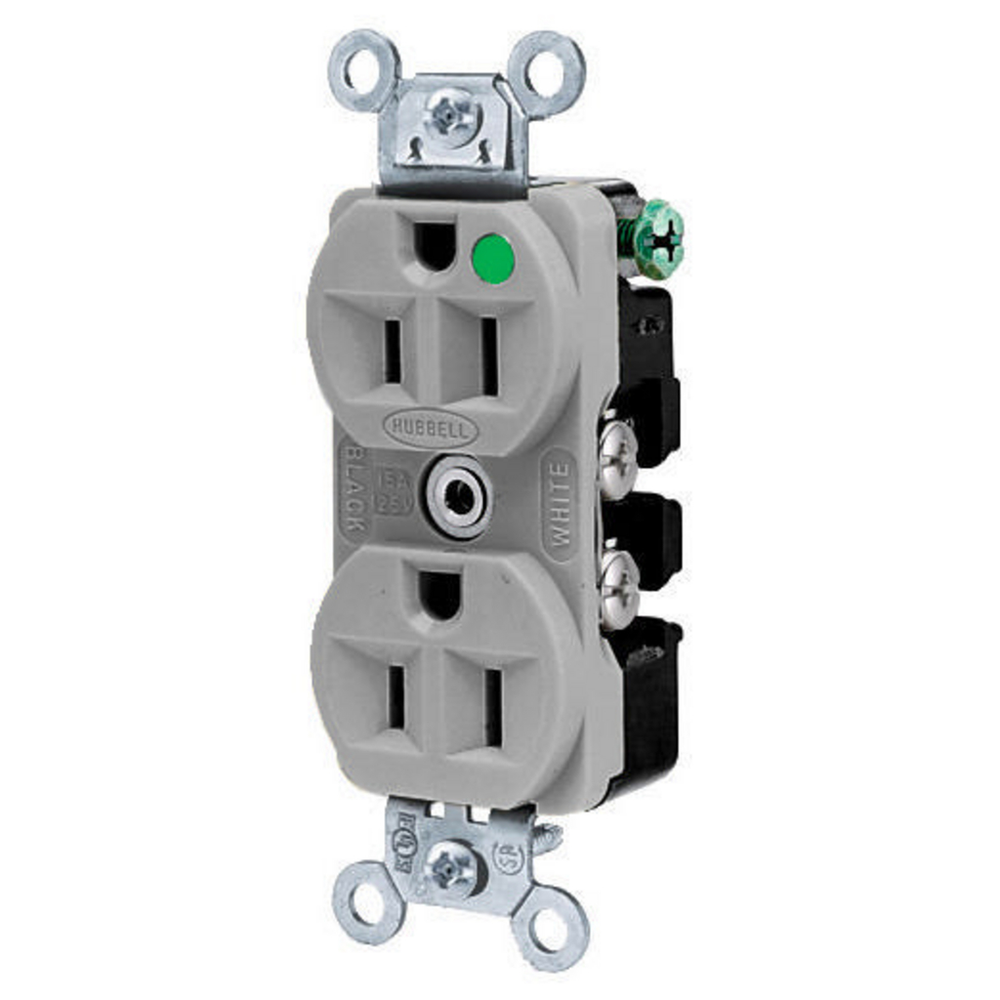

Hubbell HBL8200ILGY
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Gray, Bulk Packed, Illuminated Face.Straight Blade Devices, Receptacles, Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Gray, Bulk Packed, Illuminated Face
Hubbell Wiring Device-Kellems HBL8200ILGY is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- No
Specifications
- Amperage Rating
- 15 A
- Application
- Extra Heavy Duty Hospital Grade
- Base Unit of Measure
- EA
- BOX SIZE
- 3.238x9.178x4.298 (in)
- Carton - Gross Weight per Pack
- 2.5 lb.
- Carton - Number of Sub Packs
- 10
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585016443
- Carton - Total Units
- 10 EA
- Case Weight
- 25.000 lb.
- Class Code
- A04
- Color
- Gray
- Connectivity
- Back and Side Wired Screw Terminals
- Country of Origin
- US
- Current / Amperage Rating
- 15 A
- Current Rating
- 15 A
- Description - Invoice
- DUP RCPT, HG, 15A 125V, 5-15R, IL, GY
- Dielectric Strength
- Withstands 2,000V minimum
- Dimensions
- 3.28 in x 1.33 in x 1.05 in
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 1.790 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536698000
- Height
- 1.05 in
- Horsepower - Maximum
- 0.5
- Image Actual Or Representative
- A
- Industry Standard(s)
- CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Length
- 3.28 in
- Lowest Level UOM
- Each
- Material
- Polycarbonate
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Nema Rating
- 5-15R
- NEMA Rating
- 5-15R
- Number of Poles
- 2-Pole
- Number Of Poles
- 2-Pole
- Number of Wires
- 3-Wire
- Number Of Wires
- 3-Wire
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-0;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Phase
- Single Phase
- Replaced Catalog Number
- 8200ILG;8200ILGY
- Series
- Hospital Grade
- Size
- 3.28 in x 1.33 in x 1.05 in
- Special Features
- Illuminated Face
- Standard
- CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Style
- Finder Groove Face
- Sub Class Code
- A04A040
- Type
- Receptacle
- Voltage Rating
- 125 V
- Voltage Rating Description
- 125 V
- Wattage
- 1875 W
- Weight
- 0.25 lb.
- Width
- 1.790 in
- Wire Size
- #14 AWG to #10 AWG
