Hubbell HBL7832D
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

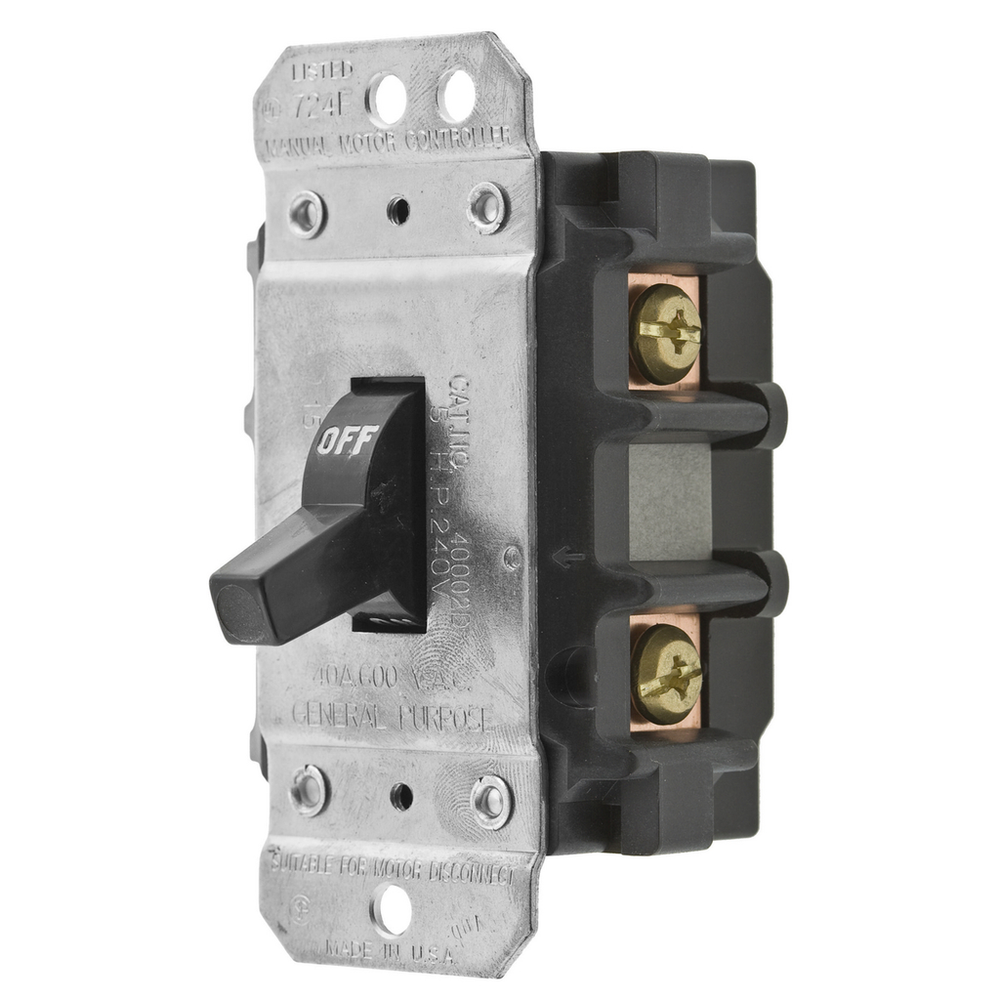

Hubbell Wiring Device-Kellems HBL7832D is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications
- EU RoHS Indicator
- Yes
Specifications
- Amperage Rating
- 30 A
- Base Unit of Measure
- EA
- BOX SIZE
- 5.048x12.488x4.048 (in)
- Carton - Gross Weight per Pack
- 5.000 lb.
- Carton - Number of Sub Packs
- 30
- Carton - Pack Description
- Carton
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585202815
- Carton - Total Units
- 10 EA
- Case - Total Units
- 30 EA
- Case Weight
- 13.500 lb.
- Class Code
- A16
- Connectivity
- Back and Side Wired
- Country of Origin
- US
- Current / Amperage Rating
- 30 A
- Current Rating
- 30
- Description - Invoice
- 30A 600V 2P DISC SW
- Display Size
- Standard Sized Product
- Each - Pack Description
- Each
- Each - Width
- 2.418 in
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Freight Class Code
- 06168002
- Harmonization Code
- 8536509901
- Horsepower - Maximum
- 15
- Image Actual Or Representative
- A
- Load Capacity
- Inductive
- Lowest Level UOM
- Each
- Material
- Stainless Steel
- Material - Mounting Hardware
- Screw Mounting
- MSDS Flag
- No
- Number of Poles
- 2 Pole
- Number Of Poles
- 2 Pole
- Operating Cycles
- 10,000 Cycles Minimum
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Phase
- Single Phase
- Replaced Catalog Number
- HBL7832
- Series
- Standard Toggle
- Special Features
- Standard Product
- Sub Class Code
- A16A240
- Type
- Back & Side Wire
- Voltage Rating
- 600 VAC
- Voltage Rating Description
- 600 VAC
- Wattage
- 18000 W
- Weight
- 0.45 lb.
- Width
- 2.418 in
